MTB8111 Package | 8MP 4K SMD+ Bullet Cameras and 64 Channel NVR with 10TB HDD

Save $1,299.99

Color: White
Number of Cameras: 32
Sale price$5,199.96 Regular price$6,499.95


64 Channel 5 Series AI NVR

The 64 channel 5 Series NVRs are capable of recording at 4K resolution at 30 frames per second, 4K live display, H 265+ recording, and 384Mbps.

This NVR has 2 network ports built-in that are designed to be connected to PoE switches, 16 port PoE switches will be included with Montavue packages, 2 switches for 32 cameras, 3 switches for 48 cameras and our 64 channel package comes with 4 switches. This helps disperse the cameras so that you can run them to multiple locations that are distant from the NVR and gives better control of the network and cameras.

The 5 Series 64 channel NVR has AI abilities that can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI functionality. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and heat map features of our fisheye cameras. Supports up to two monitors for multi-screen viewing using 2x HDMI output and 2x VGA output.


Smart Dual Illumination

The MTB8111 employs smart dual illumination which activates on motion and deploys a warm light, this provides extra active deterrence while also giving the camera more light to better view the area. This feature can also be useful for simply illuminating dark areas as a small floodlight. This feature can be set to work in tandem with SMD+, this means dual illumination will only activate when there is a human or vehicle detected.


Part of the Lunar 3.0 series, the MTB8111 records at 4K or 8MP resolution at 20 frames per second with a 111° field of view. It performs many abilities like dual illumination, color night optics, 100 ft IR LED nightvision, built-in microphone for audio recording, and artificial intelligence features like SMD+, perimeter protection, and smart search.

Montavue's advanced fixed-angle camera will be useful in any situation. Equipped with a hard aluminum body, IP67 weather protection, and a temperature range of -40°F to 131°F, this camera can operate in nearly any location or environment.

10TB Included Storage

A 10TB hard drive is included with this package, however, you can upgrade each hard drive to 20TB. This NVR has 8 hard drive bays, meaning you have a potential total storage capacity of 160TB.

H.265 is currently the standard for security camera recording because it's efficient and fast. Montavue has advanced this idea with Smart H.265+ recording which enables the NVR to conserve more hard drive storage. The 64 Channel 5 Series has an E-SATA port that is able to connect to an E-SATA box which can extend the storage capacity even further.

The MTB8111 has a slot for a micro SD card. These is useful for acting as backup storage if anything were to happen to the NVR or hard drive within, in that event, each camera would have independent recordings on their micro SD card that you could refer to. These micro SD cards can typically record up to 3-4 days worth of video.


The 5 Series AI NVR's from Montavue can employ AI abilities to cameras that otherwise would not have them. This means you can use SMD+ Human/Vehicle recognition, Face Detection, Smart Search, and Perimeter Protection. All of these abilites are harnessed through the NVR and can produce more efficient playback, increased identification accuracy, and reduce false notifications to your mobile device. The 5 Series 8 channel NVR can simultaneously perform 2 channel face detection, 4 channel perimeter protection , and 8 channel SMD+ capability, all without any built-in camera AI ability being required.


SMD+ is a significant step-up from standard smart motion detect. With a 98% accuracy rate and increased recognition distance than standard SMD, SMD+ is sure to impress with its performance. Built directly into the MTB8111 camera, this uses onboard AI to perform recognition abilities to determine if motion happening on camera is human or vehicle, this helps prevent false notifications and ensures the dual illumination activates only when necessary.

Artificial Intelligence

In addition to the AI built into the NVR, the MTB8111 also has it's own AI capabilities to employ. Each camera is capable of performing perimeter protection, SMD+ , H.265+ recording, and smart search which works together with the NVR to comb through recorded footage to find any instances of vehicles or humans in view of the camera.

Remote Connectivity

Montavue NVRs can connect to your local network and internet which enables the ability to view your system remotely using our free Montavue GO app. Montavue GO is available on smartphone, PC, or tablet and can be accessed 24/7 for free as long as you have an internet signal to your NVR and viewing device. Smart notifications can be sent to your mobile device when humans or vehicles are identified by your Montavue camera system, enabling you to respond to events while you're away.

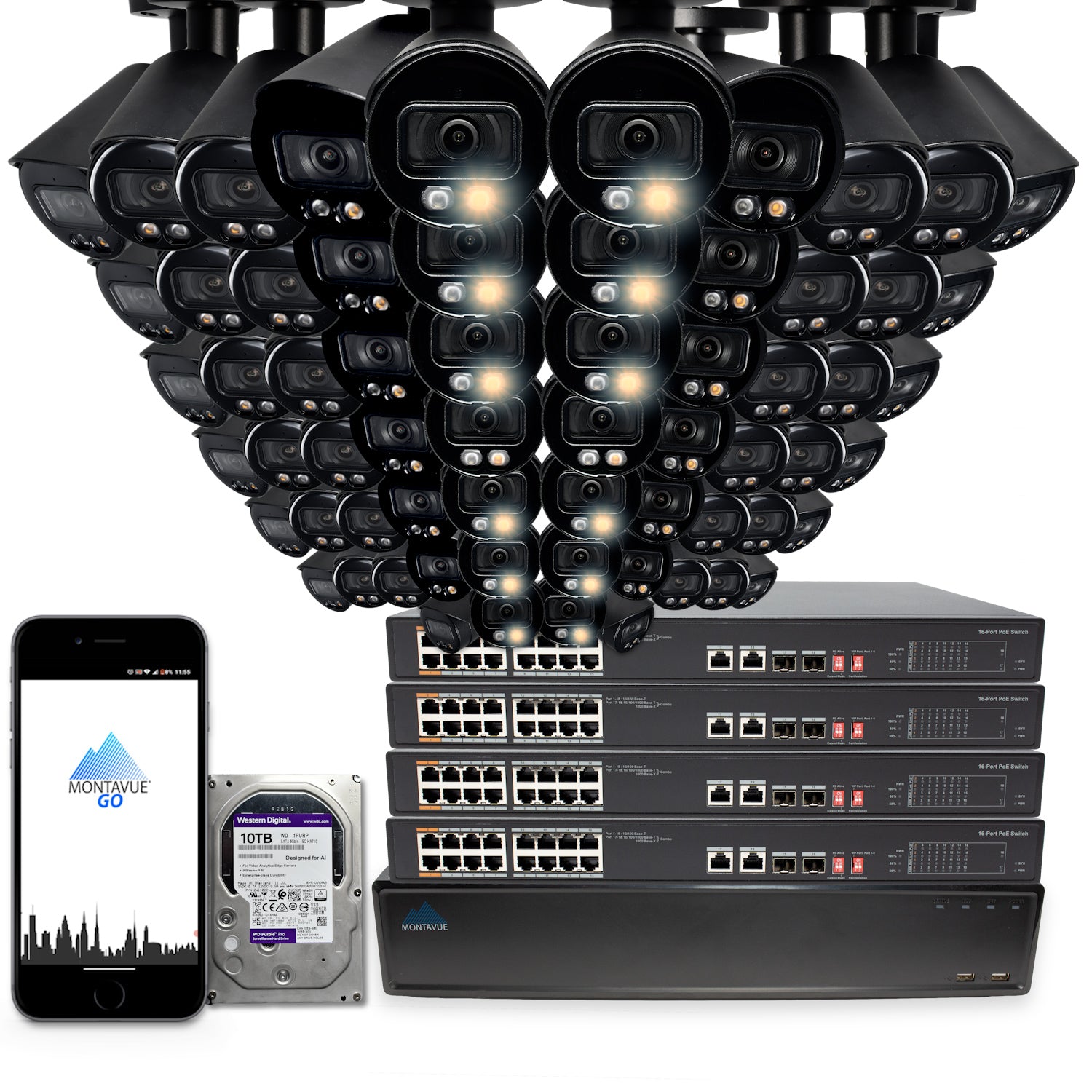

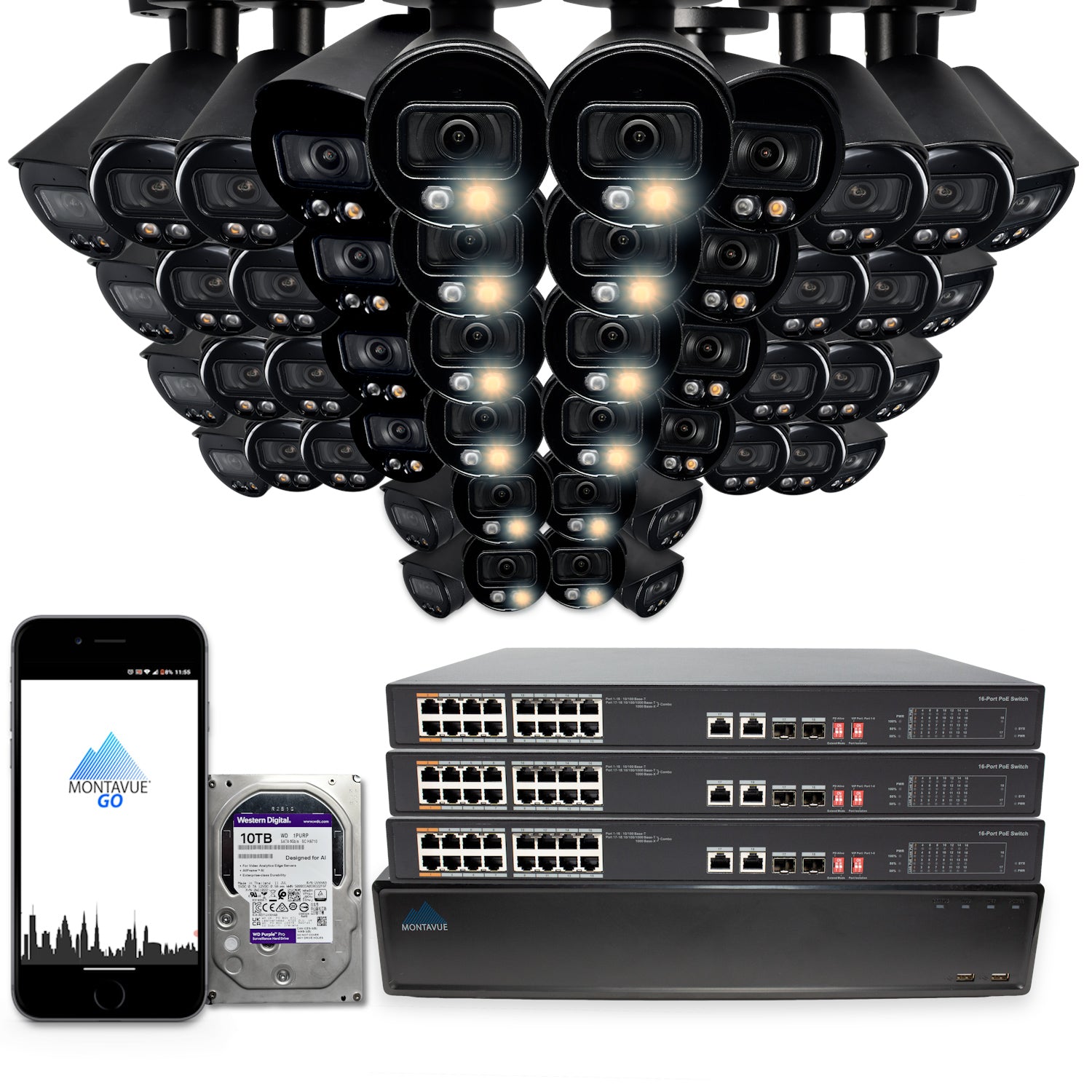

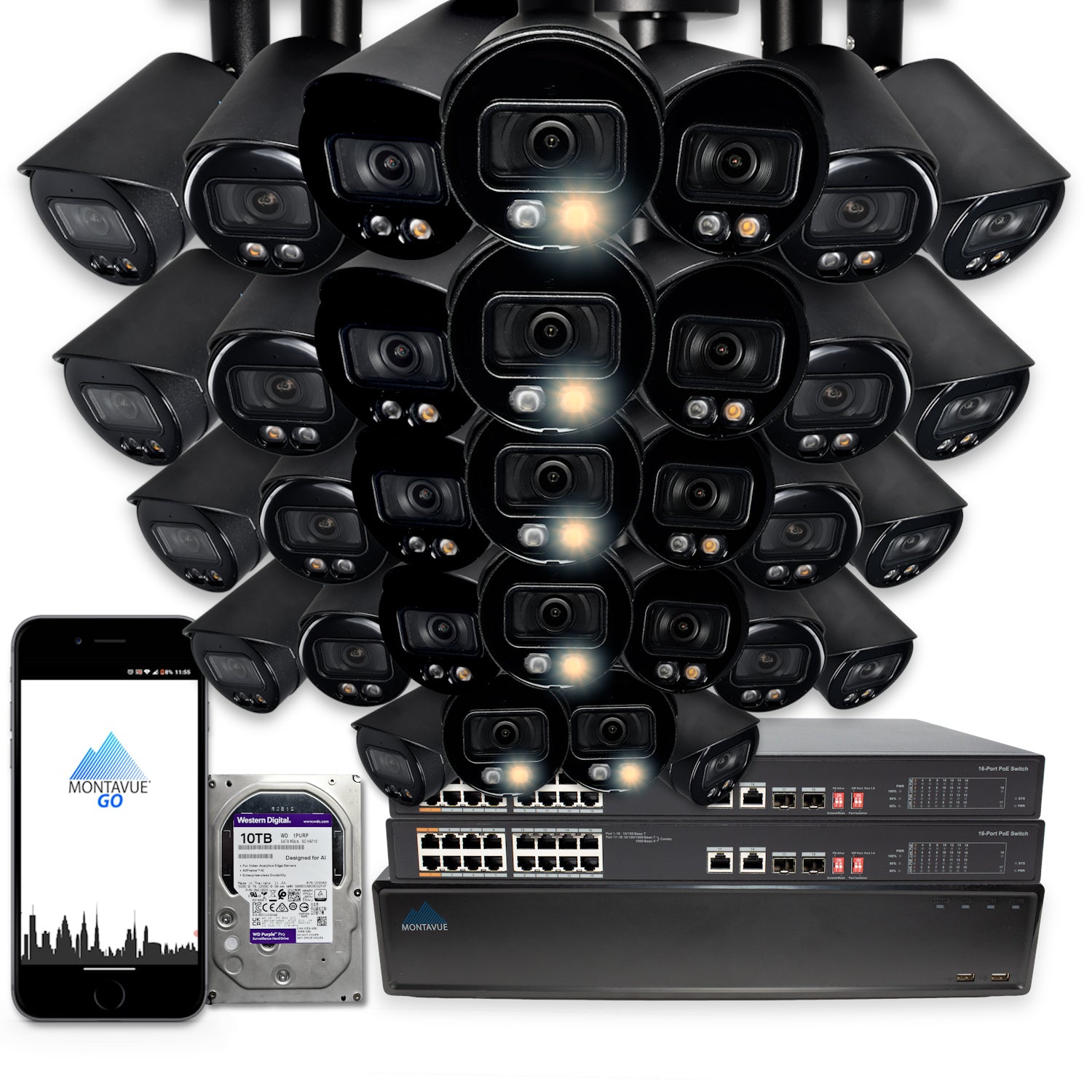

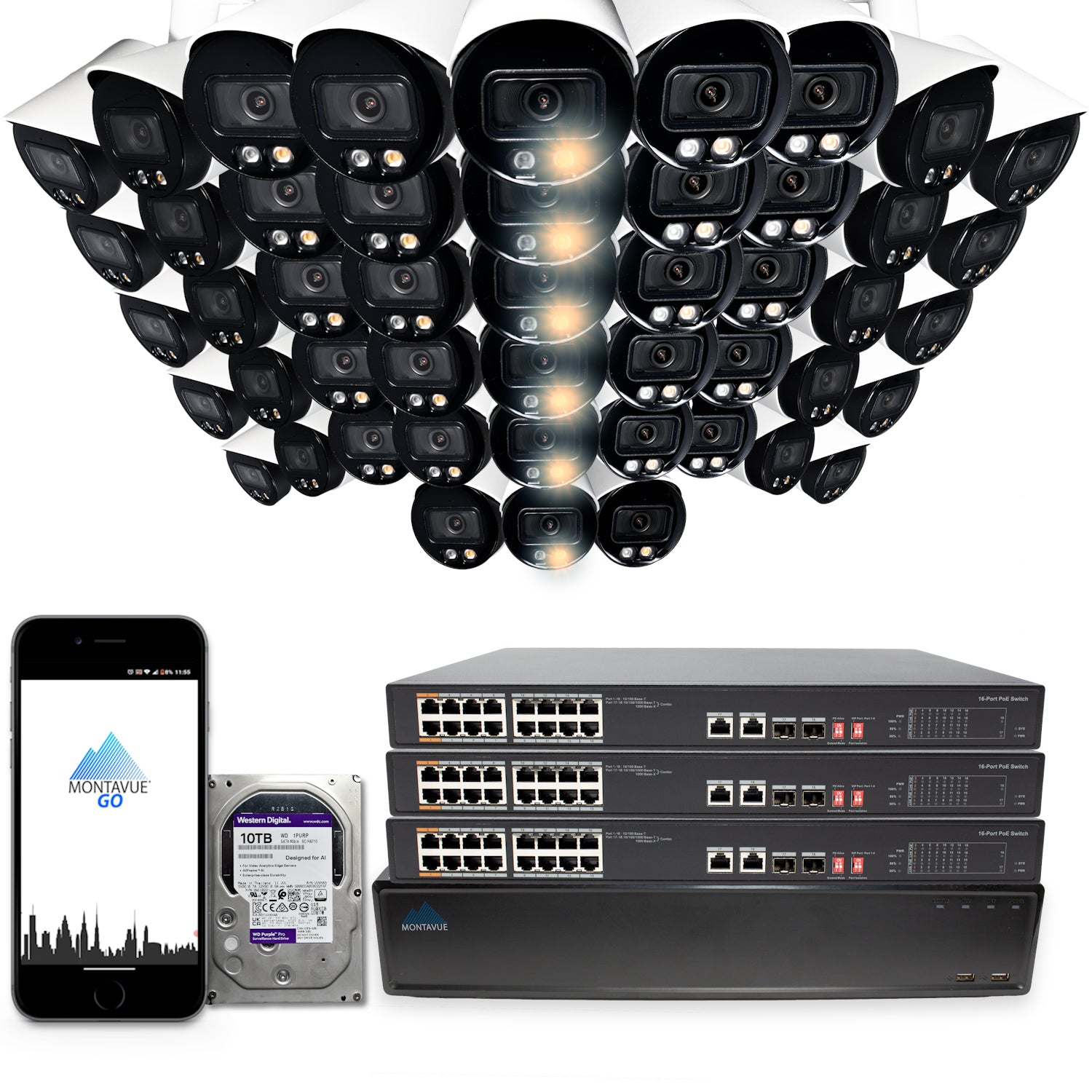

What's Included

  • MNR5864-AI NVR
  • Two MAS16P135 switches for a 32 camera, Three MAS16P135 switches for a 48 camera and Four MAS16P135 switches for a 64 camera
  • 10TB Surveillance Grade HDD with maximum storage capacity of 160TB
  • MTB8111-AI-SMD-DI Cameras
  • 100ft Cat5e Cable per camera
  • HDMI Cable and Network Cable
  • USB Mouse
  • Camera mounting template decal
  • Screws and Anchors
  • Allen Wrench
  • Water Resistant Casing for PoE connection

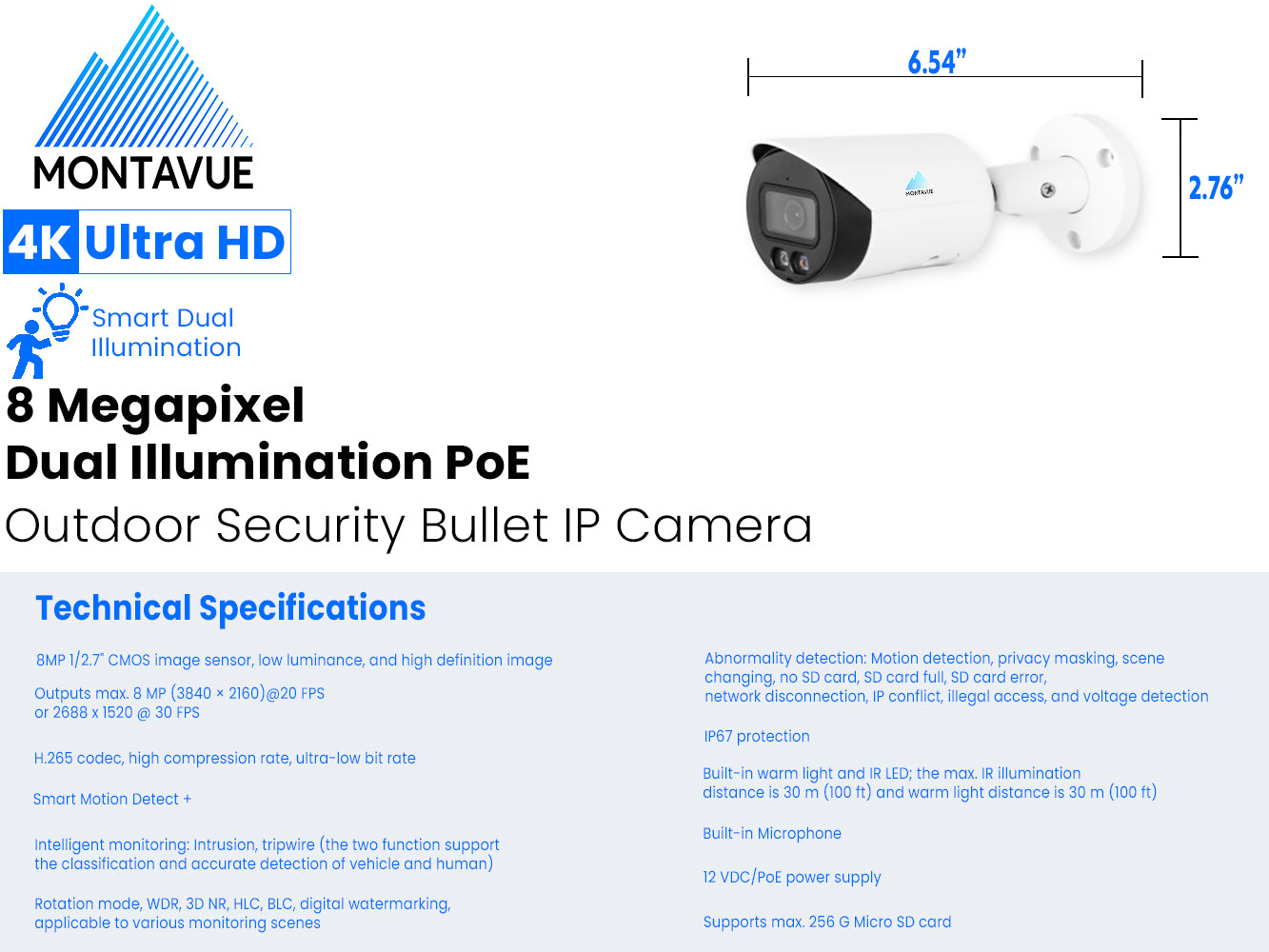

Specifications for MTB8111-AI-SMD-DI and MNR5864-AI
