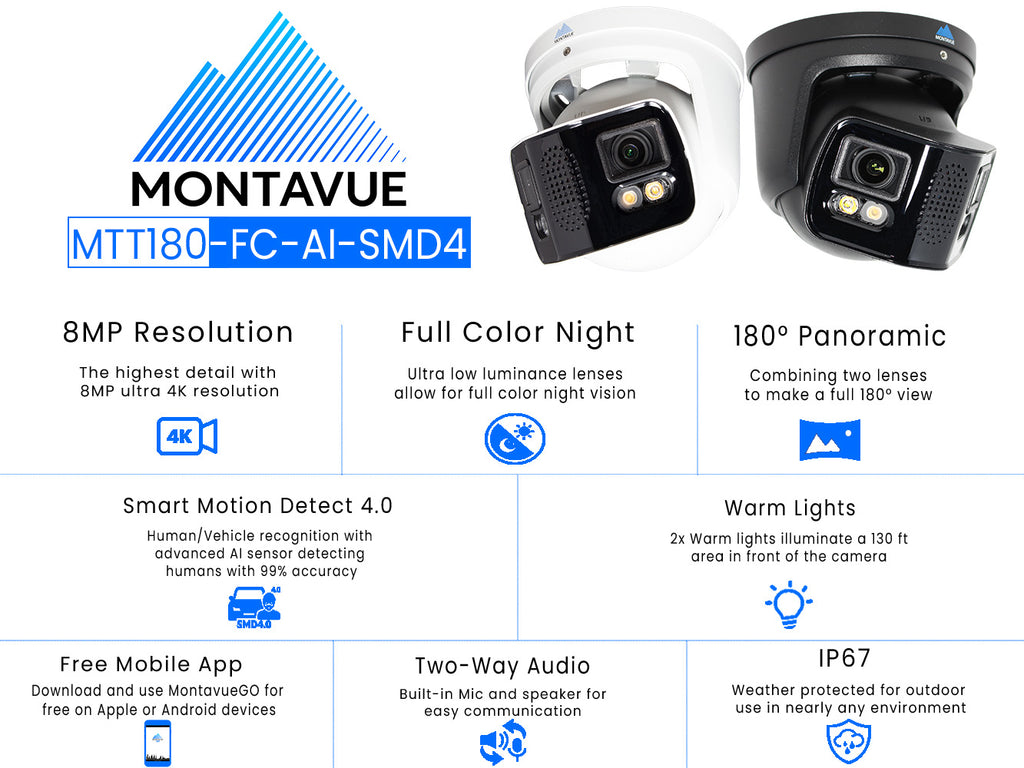

The MTT180 is an 8MP 4K 180° Panoramic Full Color AISMD Turret Camera. The 180° wide angle splicing image provides a precise, reliable field of view great for businesses, stores, schools, or your home. The MTT180 has a built-in audio mic and speaker (two-way audio) that can record and listen-in/talk live. This camera offers IVS with human/vehicle filter, heat map, and people counting as intelligent features. Our camera is made out of aluminum with quality components and features to give you clear and crisp images day and night that will last for years to come. Setup is a breeze with our free mobile viewing app, Montavue, which is compatible with Mac, PC, Android and Apple.
Description
8MP Resolution
See the finest details with leading 8MP 4K resolution
IP67 Rated
Indoor/Outdoor IP security camera
Full-Color Night Vision
Provides color video at night
Field of View
View a large area with a two camera
Horizontal: 180°; Vertical: 48°
Two-Way Audio
Record, listen-in, and talk live via the built-in audio mic and speaker.
View Your Cameras From Anywhere!
With MontavueGO you can access and control your cameras and surveillance system from around the world with the power of internet and by using our incredibly easy to use application on your mobile device or computer. When using your mobile device simply download the MontavueGO app and scan the QR code on your NVR in order to sync your system to your phone. Now you can view and control your cameras from anywhere. Live viewing and past recordings are only the start, there are an abundant amount of features, one that we love is push notifications. Set the camera to motion detect and when something moves in the area you designate the application will send a push notification to your phone.
What's Included
- MTT180 Camera
- Camera mounting template decal
- Screws and Anchors
- Allen Wrench
- Water Resistant Casing for PoE connection
Specifications for MTT180-FC-AI-SMD4-W (white)
|
Resolution |
8MP (4K) 4096 × 1800 |
|
Image Sensor / Focal Length |
2 X 3.6mm Fixed Lens |
|
Illumination Distance |
131.23 ft |
|
Min Illumination |
0.0005 lux@F1.0 (Color, 30 IRE) |
|
IIlluminator Number |
4 (warm light) |
|
DORI Distance |
Detect: 230.64ft Observe: 92.19ft Recognize: 46.26ft Identify 22.97ft |
|
IVS (perimeter protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|
Stream Capability |
3 Streams |
|
SMD |
Yes |
|
BLC, HLC, WDR |
Yes, Yes, Yes 140 dB |
|
Built-in Audio |
Yes, mic/speaker |
|
Storage |
NVR or up to 512GB Max SD Card |
|
Power Supply |
EPoE/12V DC/POE (802.3at) |
|
Power Consumption |
Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE) |
|
Operating Temperature |
–40 °F to +140 °F |
|
Ingress Protection IP Rating |
IP67 |
|
Casing Material |
Full-Metal housing |
|
Product Dimensions |
4.8" × 5.19" (W × H) |
|
AI |
Yes |
|
Active Deterrence |
Yes (Speaker) |
