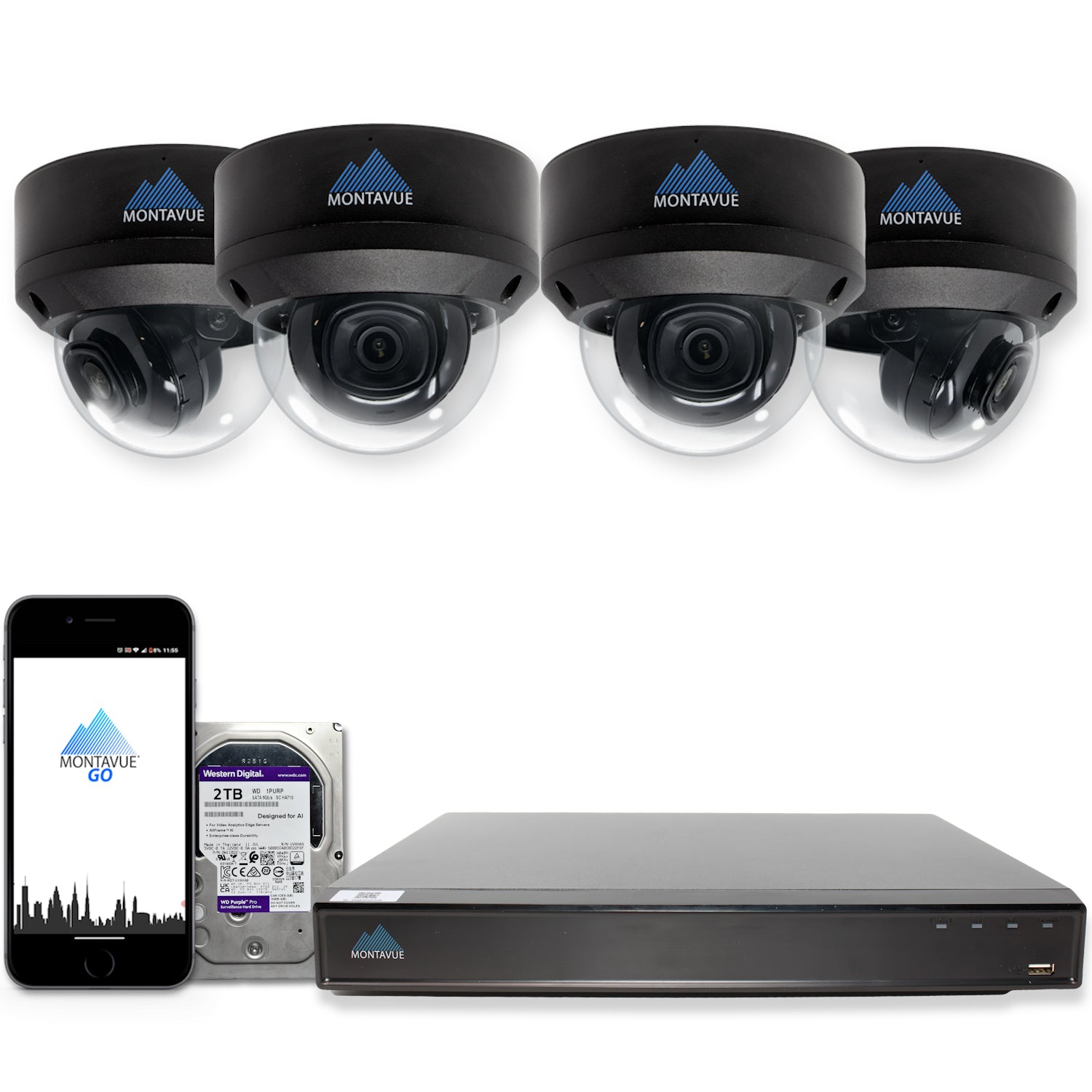

MTD8108-X Package | 8MP 4K SMD 4.0 Dome Cameras and 8 Channel NVR with 2TB HDD

8 Channel 4 Series AI NVR

The 8 channel 4 Series NVRs are capable of recording at 4K resolution at 30 frames per second, 4K live display, H 265+ recording, and processing speeds of 256Mbps.

This NVR has 8 PoE ports built-in to provide power and information transfer for up to 8 PoE IP cameras.

The 4 Series 8 channel NVR has AI abilities that can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI functionality. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and heat map features of our fisheye cameras. Supports up to two monitors for multi-screen viewing using 1 HDMI output and 1 VGA output.

MTD8108-AISMD-X

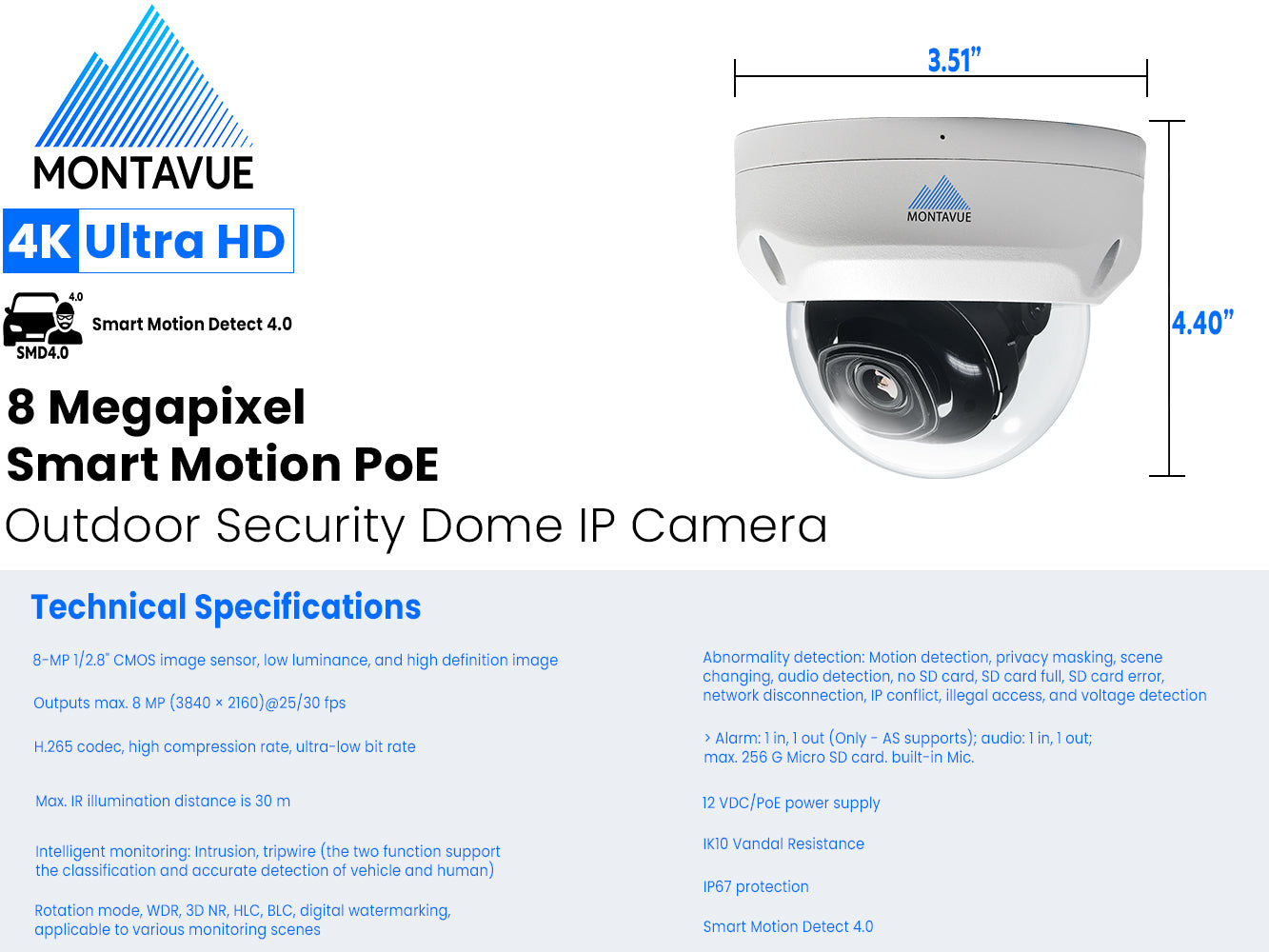

Part of the Peak 3.0 series, the MTD8108 sets the standard for what 4K security should look like. Able to record at 4K or 8MP resolution at 30 frames per second with a 108° field of view. It performs many abilities like color night optics, 100 ft IR LED nightvision, built-in microphone for audio recording, and artificial intelligence features like SMD 4.0, perimeter protection, and smart search.

As Montavue's flagship model (8108) this camera will be useful in any situation. Equipped with a hard aluminum body, IP67 weather protection, IK10 vandal-proof protection, and a temperature range of -40°F to 140°F, this camera can operate in nearly any location or environment.

IK10 Vandal-Proof

The MTD8108 is equipped with a vandal-proof dome that encompasses the lens which provides the best protection against the elements and anyone that is looking to damage your cameras. IK10 is the highest available rating for any commercially available camera, so you can be assured that it will be resistant to most types of weapons and projectiles.

2TB Included Storage

This package comes with a 2TB hard drive which will be installed prior to shipping. The MNR4208-8P-AI NVR is capable of hosting up to 2x 16TB hard drives for a total internal storage capacity of 32TB.

H.265 is currently the standard for security camera recording because it's efficient and fast. Montavue has advanced this idea with Smart H.265+ recording which enables the NVR to conserve more hard drive storage by decreasing the bit rate for objects on screen that are not human or vehicle, this means that all relevant human/vehicle targets will be more clear on screen and the rest will be recorded at a lower bit rate. This ability allows the NVR to use up to 35% less space on your hard drive while still maintaining clear visuals on your recordings.

The MTD8108 has a slot for a micro SD card. These is useful for acting as backup storage if anything were to happen to the NVR or hard drive within, in that event, each camera would have independent recordings on their micro SD card that you could refer to. These micro SD cards can typically record up to 3-4 days worth of video.

SMD 4.0

Montavue's latest Smart Motion Detect 4.0 detects humans and vehicles to provide more accurate notifications than ever before. SMD 4.0 is the latest generation of smart motion detect ability from Montavue. With a 99% accuracy rate and further recognition distance than ever before, SMD 4.0 is sure to impress with its performance. Built directly into the MTD8108 camera, this uses onboard AI to perform recognition abilities to save your NVRs processing power and AI functionality for other channels that may have better use of it.

AI by NVR

The 4 Series AI NVR's from Montavue can employ AI abilities to cameras that otherwise would not have them. This means you can use SMD+ Human/Vehicle recognition, Face Detection, Smart Search, and Perimeter Protection. All of these abilites are harnessed through the NVR and can produce more efficient playback, increased identification accuracy, and reduce false notifications to your mobile device. The 4 Series 8 channel NVR can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI ability being required. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and heat map features of our fisheye cameras.

Remote Connectivity

Montavue NVRs can connect to your local network and internet which enables the ability to view your system remotely using our free Montavue GO app. Montavue GO is available on smartphone, PC, or tablet and can be accessed 24/7 for free as long as you have an internet signal to your NVR and viewing device. Smart notifications can be sent to your mobile device when humans or vehicles are identified by your Montavue camera system, enabling you to respond to events while you're away.

• MNR4208-8P-AI
• 2TB Surveillance Grade HDD
• MTD8108-AISMD-X (white) or - B(black)
• 100ft Cat5e Cable per camera
• HDMI Cable and Network Cable

• USB Mouse
• Camera mounting template decal
• Screws and Anchors
• Allen Wrench
• Water Resistant Casing for PoE connection

Click Here to Download Camera Specifications

Click Here to Download NVR Specifications
