- MNR5864-AI NVR
- Two MAS16P135 switches for a 32 camera, Three MAS16P135 switches for a 48 camera and Four MAS16P135 switches for a 64 camera
- 10TB Surveillance Grade HDD with maximum storage capacity of 160TB
- MTT8095-AI-SMD-DI Cameras
- 100ft Cat5e Cable per camera
- HDMI Cable and Network Cable
Description
What's Included
- USB Mouse
- Camera mounting template decal
- Screws and Anchors
- Allen Wrench
- Water Resistant Casing for PoE connection

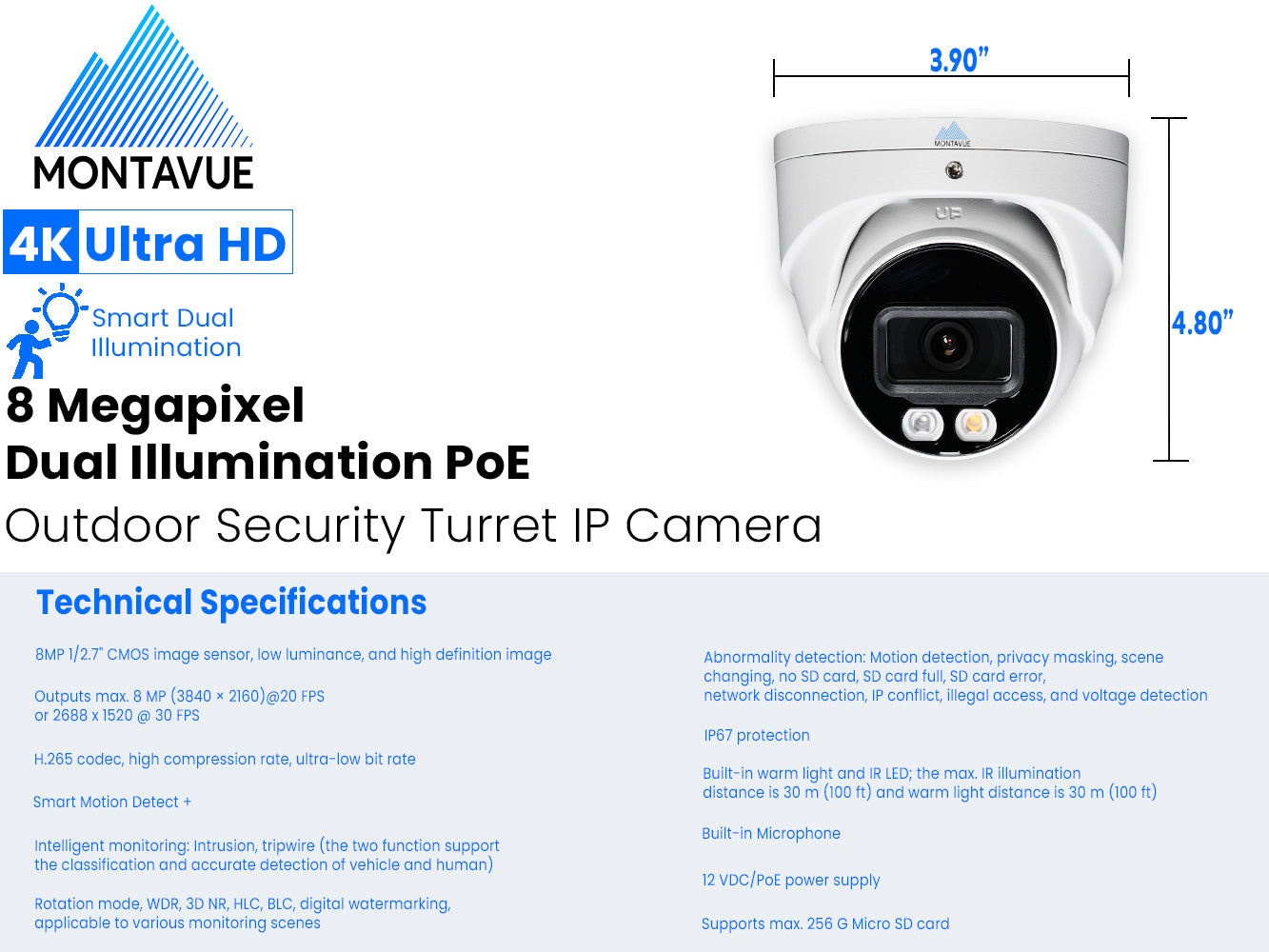

Specifications for MTT8095-AI-SMD-DI-W(white)
|
Resolution |
8MP (4K) 3840 (H) x 2160 (V) |
|
Image Sensor / Focal Length |
1/2.9" CMOS / 2.8mm |
|
Illumination Distance |
98.43ft (IR), 98.43ft (Warm Light) |
|
Min Illumination |
.008 lux @F1.6 (Color, 30IRE) .0008 lux @F1.6 (B/W, 30IRE) |
|
IIlluminator Number |
1 (IR LED), 1 (Warm light LED) |
|
DORI Distance |
Detect: 278.22 ft Observe:111.22 ft Recognize: 55.77 ft Identify 27.89 ft |
|
IVS (perimeter protection) |
Intrusion, tripwire |
|
Video Compression |
Smart H.265+, Smart H.264+, H.264H, H.265, H.265, MJPEG |
|
Stream Capability |
2 Streams |
|
BLC, HLC, WDR |
Yes, Yes, Yes 120db |
|
Built-in Audio Mic |
Yes |
|
Storage |
NVR or up to 256GB Max SD Card |
|
Power Supply |
PoE (802.3af) or 12 VDC |
|
Power Consumption |
Basic: 2.6 W (12 VDC); 3.3 W (PoE) |
|
Operating Temperature |
–40 °F to +140 °F |
|
Ingress Protection IP Rating |
IP67 |
|
Casing Material |
Full-Metal housing |
|
Product Dimensions |
3.90" x 4.33" |

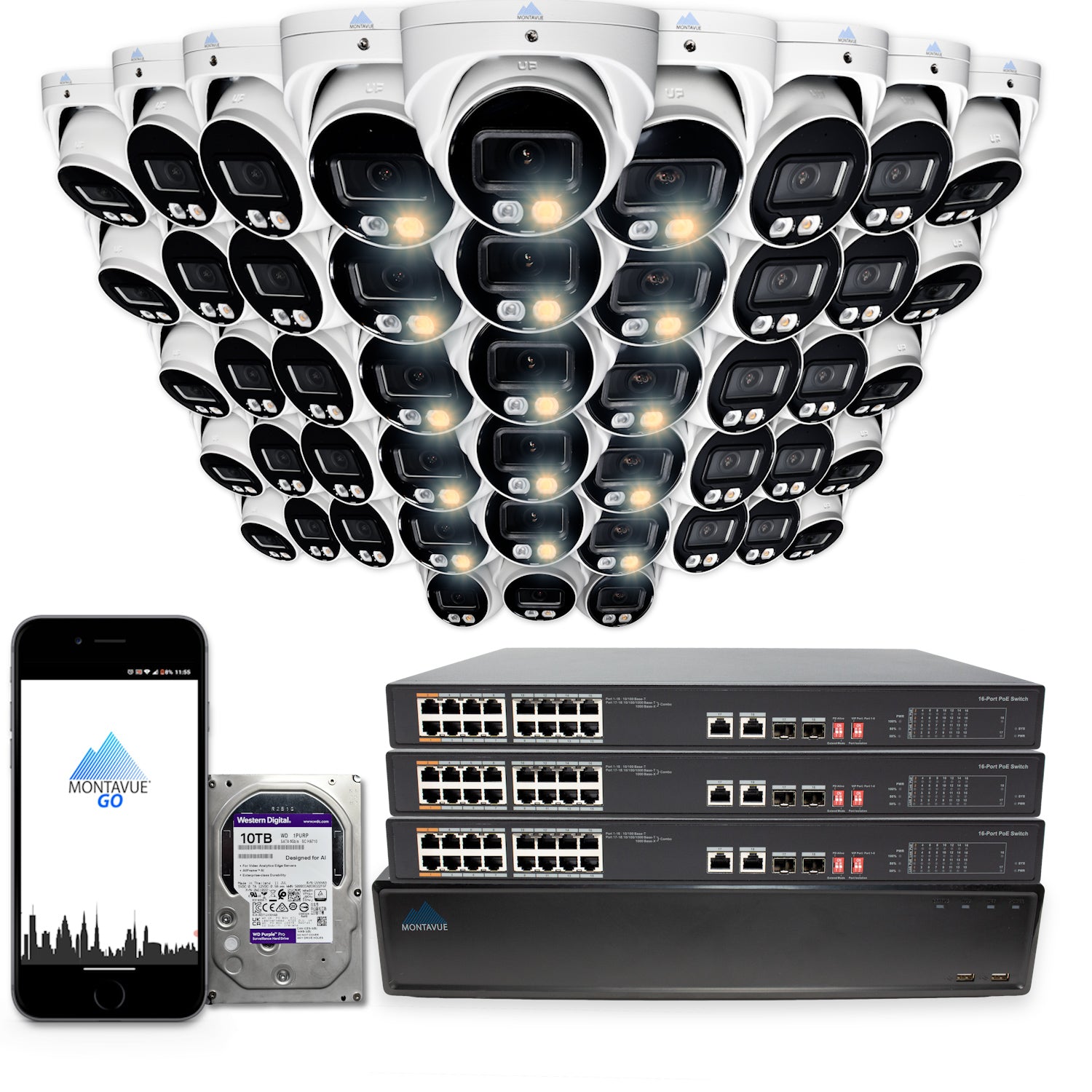

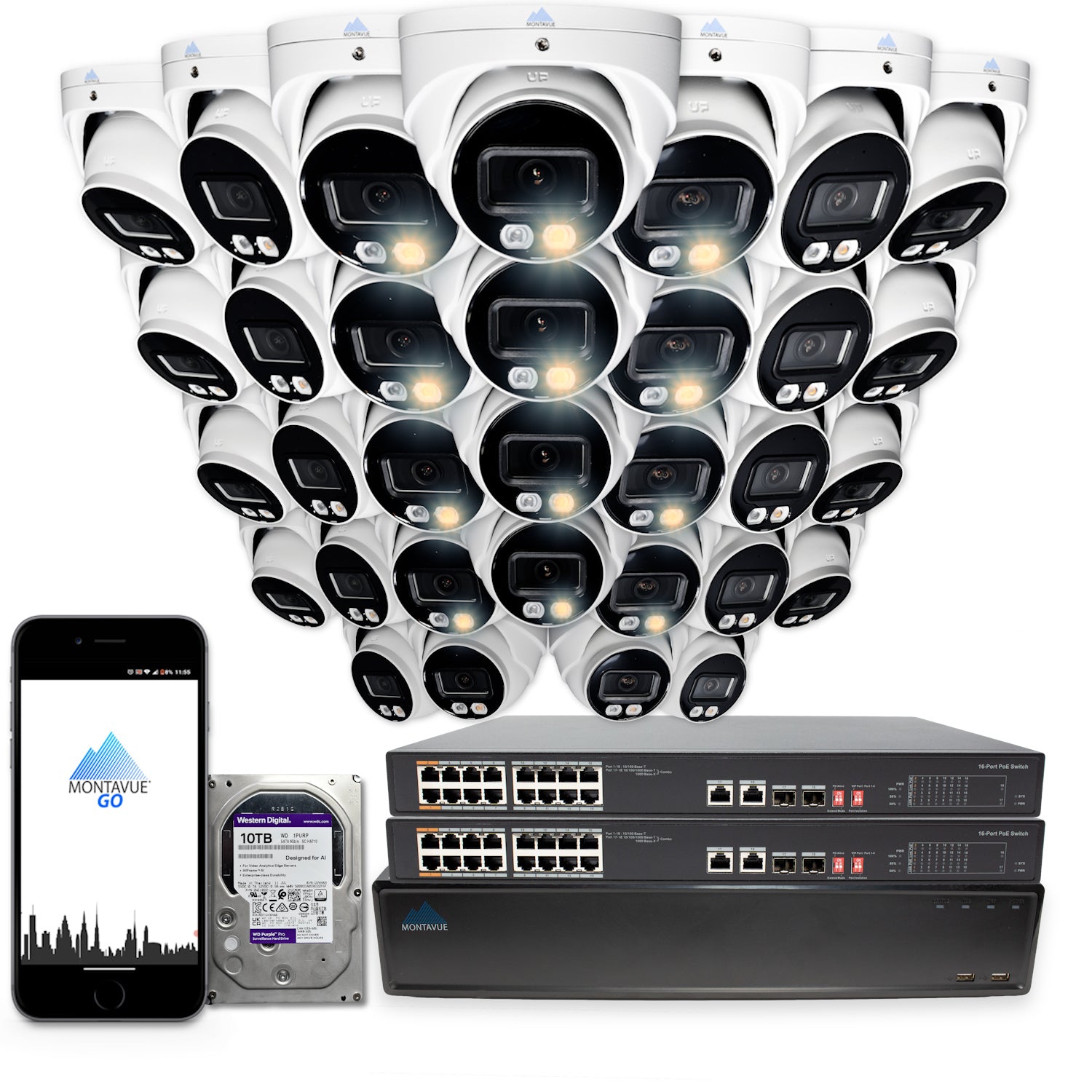

Montavue MTT8095-AI-SMD-DI-W 4K Full Color Turret Camera and 4K 64 Channel NVR
Our 4K 8MP IP audio turret is loaded with features for an affordable price compared to the competition. This security camera is capable of 4K resolution while recording at 20FPS to ensure crisp, clean, and smooth footage. This 8MP Turret camera contains Montavue's next generation of AI chips with a smart motion detection and AI tripwires to filter out human and vehicle targets, which allows for important events to trigger notifications while filtering out unwanted motion. The Smart dual illumination feature provides IR night vision when no human or vehicle is detected, once detected using AI SMD, illuminator is activated to produce full color video in the dark. In addition, this camera features a built-in microphone allowing audio recording and live viewing so that no important details are missed. This high quality security camera is built for the harshest indoor/outdoor applications with an IP67 weatherproof rating and the ability to perform in temperatures ranging from -40° F - 131° F. Our camera is made with a full metal housing and quality components and features to give you clear and crisp images day and night that will last for years to come. Setup is a breeze with our free mobile viewing app, MontavueGO, which is compatible with Mac, PC, Android and Apple. Designed to work as a stand alone camera with up to a 256GB MicroSD card or to record to any Montavue or Onvif compliant NVR, this camera is sure impress!
The included MNR5864-AI includes a 10TB hard drive with the ability to hold up to 160TB. This NVR has no PoE ports so you only need to run a single cat5e cable per camera (up to 300ft) to the included PoE switches to transmit both data a power. For packages with 32 cameras 2 MAS16P135 PoE switches are included, 48 cameras includes 3 switches, and 64 cameras includes 4 switches
*To ensure your installation goes smoothly check out our recommended accessories listed above. Onboard storage options such as microSD cards can keep your recordings secure - even if something happens to your NVR.
