MTD4095 Package | 4MP 2K SMD+ Dome Cameras and 32 Channel NVR with 6TB HDD

32 Channel 4 Series AI NVR

The MNR4432-16P-AI NVRs are capable of recording at 4K resolution at 30 frames per second, 4K live display, H 265+ recording, and processing speeds of 280Mbps.

This NVR has 16 PoE ports built-in with the remaining cameras to be connected to a 16 port PoE switch which will be included with any purchase of a package with 24 & 32 cameras.

The 4 Series 32 channel NVR has AI abilities that can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI functionality. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and heat map features of our fisheye cameras. Supports up to two monitors for multi-screen viewing using 1 HDMI output and 1 VGA output.

MTD4095-AI-SMD

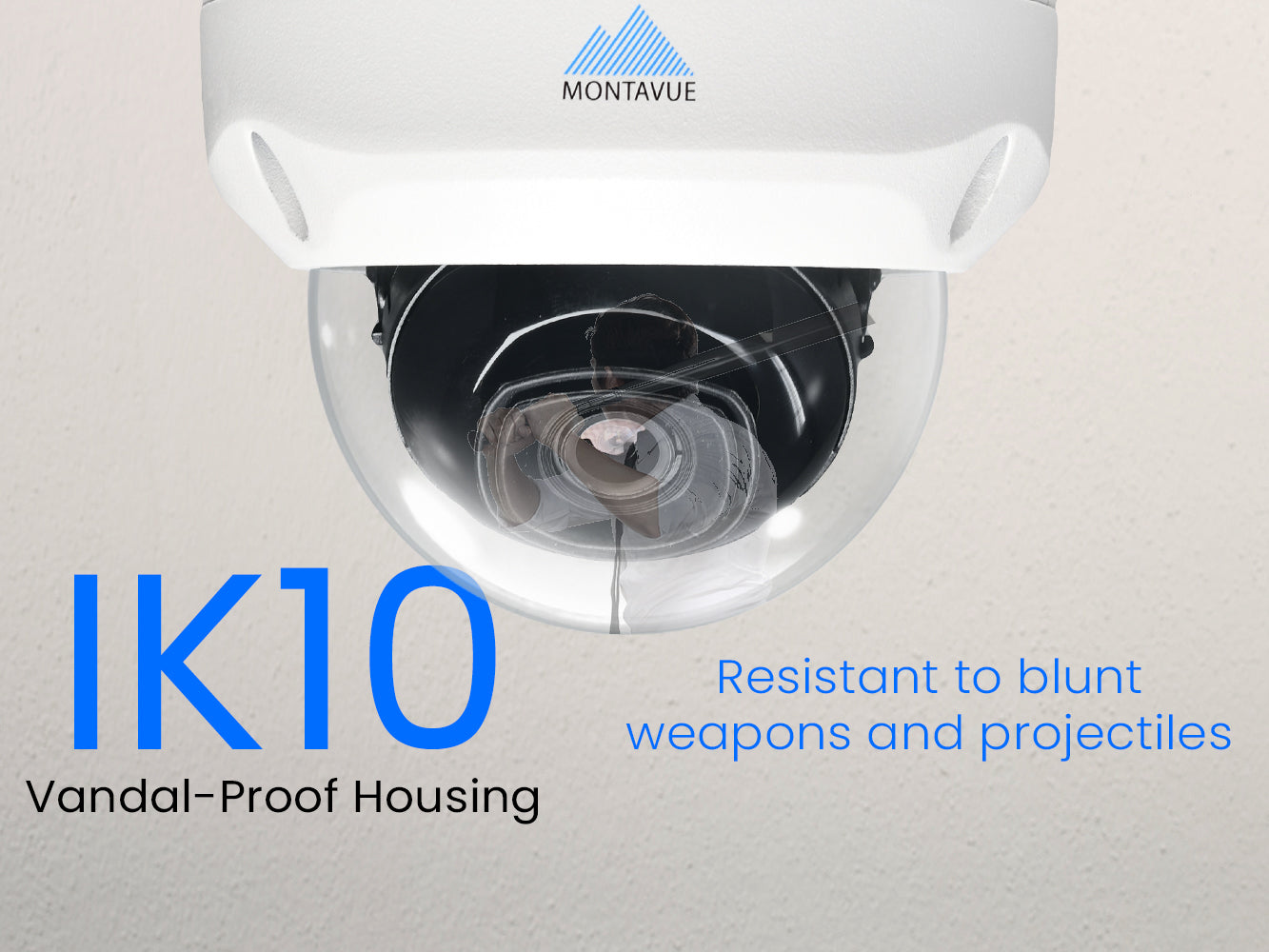

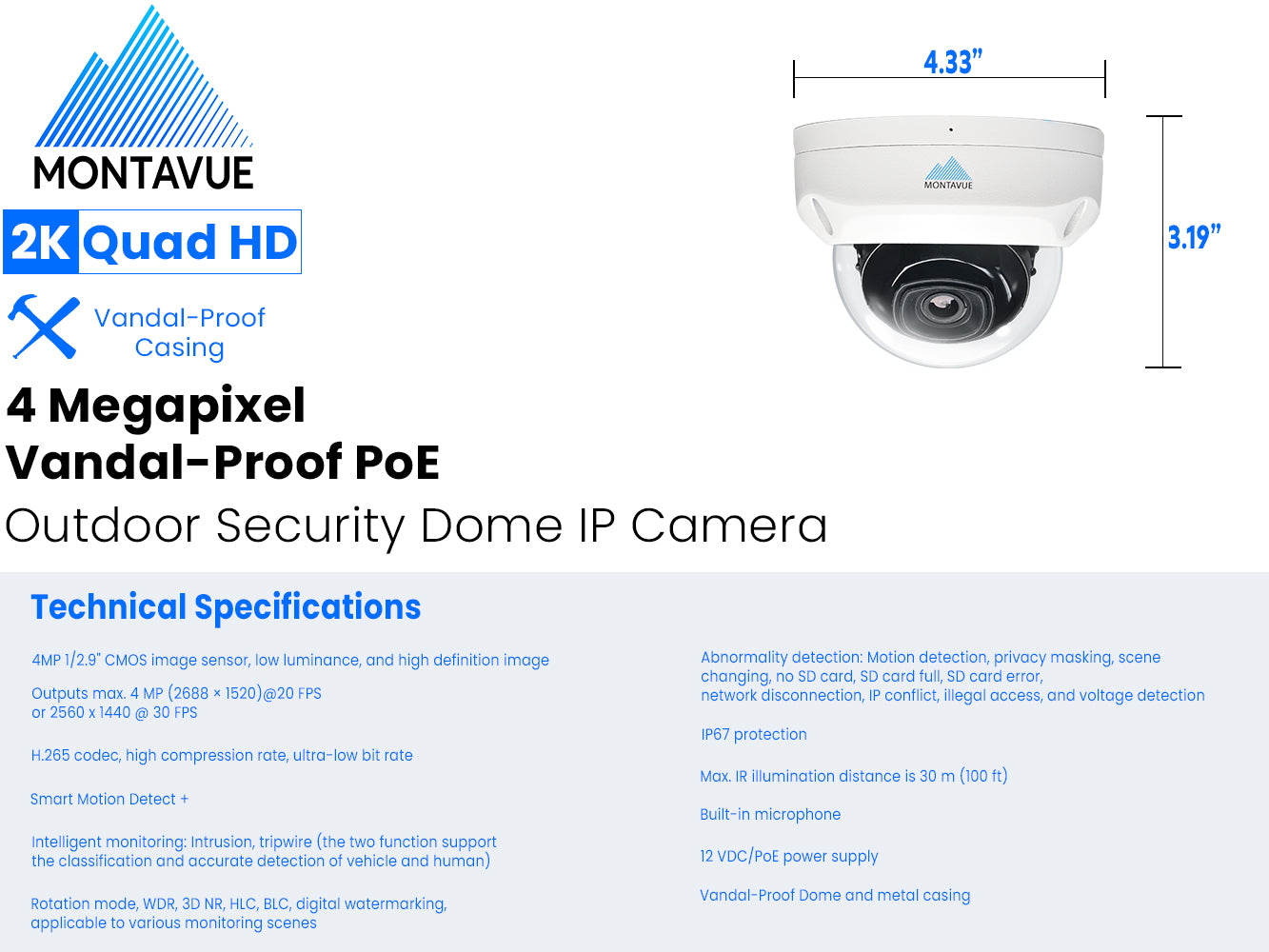

Part of the Lunar 2.0 series, the MTD4095 records at 2K or 4MP resolution at 20 frames per second with a 95° field of view. It performs many abilities like color night optics, 100 ft IR LED nightvision, built-in microphone for audio recording, and artificial intelligence features like SMD+, perimeter protection, smart search, and it is equpped with a vandal-proof dome rated at IK10 which is the strongest commercially available protection for cameras you can achieve.

Montavue's advanced fixed-angle camera will be useful in any situation. Equipped with a hard aluminum body, IP67 weather protection, and a temperature range of -40°F to 140°F, this camera can operate in nearly any location or environment.

SMD+

Smart motion detect uses AI recognition to determine if objects moving in front of the camera are human or vehicle. This helps eliminate false notifications, accurately activates the dual illumination, and ensures that all motion recordings are significant and not just a tree blowing in the wind. SMD+ is an advanced version powered by AI within the camera to give you better accuracy at all times of the day.

6TB Included Storage

The MNR4432-16P-AI package comes with a 6TB hard drive, however the NVR is capable of hosting up to 4x 16TB hard drives giving you a total storage capacity of 64TB.

H.265 is currently the standard for security camera recording because it's efficient and fast. Montavue has advanced this idea with Smart H.265+ recording which enables the NVR to conserve more hard drive storage by decreasing the bit rate for objects on screen that are not human or vehicle, this means that all relevant human/vehicle targets will be more clear on screen and the rest will be recorded at a lower bit rate. This ability allows the NVR to use up to 35% less space on your hard drive while still maintaining clear visuals on your recordings.

The MTD4095 has a slot for a micro SD card. These is useful for acting as backup storage if anything were to happen to the NVR or hard drive within, in that event, each camera would have independent recordings on their micro SD card that you could refer to. These micro SD cards can typically record up to 3-4 days worth of video.

Artificial Intelligence

The MTD4095 camera has built-in artificial intelligence abilities. Each camera is capable of performing perimeter protection, SMD+ , H.265+ recording, and smart search which works together with the NVR to comb through recorded footage to find any instances of vehicles or humans in view of the camera. Perimeter protection uses digital tripwires to guard specific areas and SMD+ accurately detects humans and vehicles within the entire view.

AI by NVR

The 4 Series AI NVR's from Montavue can employ AI abilities to cameras that otherwise would not have them. This means you can use SMD+ Human/Vehicle recognition, Face Detection, Smart Search, and Perimeter Protection. All of these abilites are harnessed through the NVR and can produce more efficient playback, increased identification accuracy, and reduce false notifications to your mobile device. The 4 Series 8 channel NVR can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI ability being required. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and heat map features of our fisheye cameras.

Remote Connectivity

Montavue NVRs can connect to your local network and internet which enables the ability to view your system remotely using our free Montavue GO app. Montavue GO is available on smartphone, PC, or tablet and can be accessed 24/7 for free as long as you have an internet signal to your NVR and viewing device. Smart notifications can be sent to your mobile device when humans or vehicles are identified by your Montavue camera system, enabling you to respond to events while you're away.

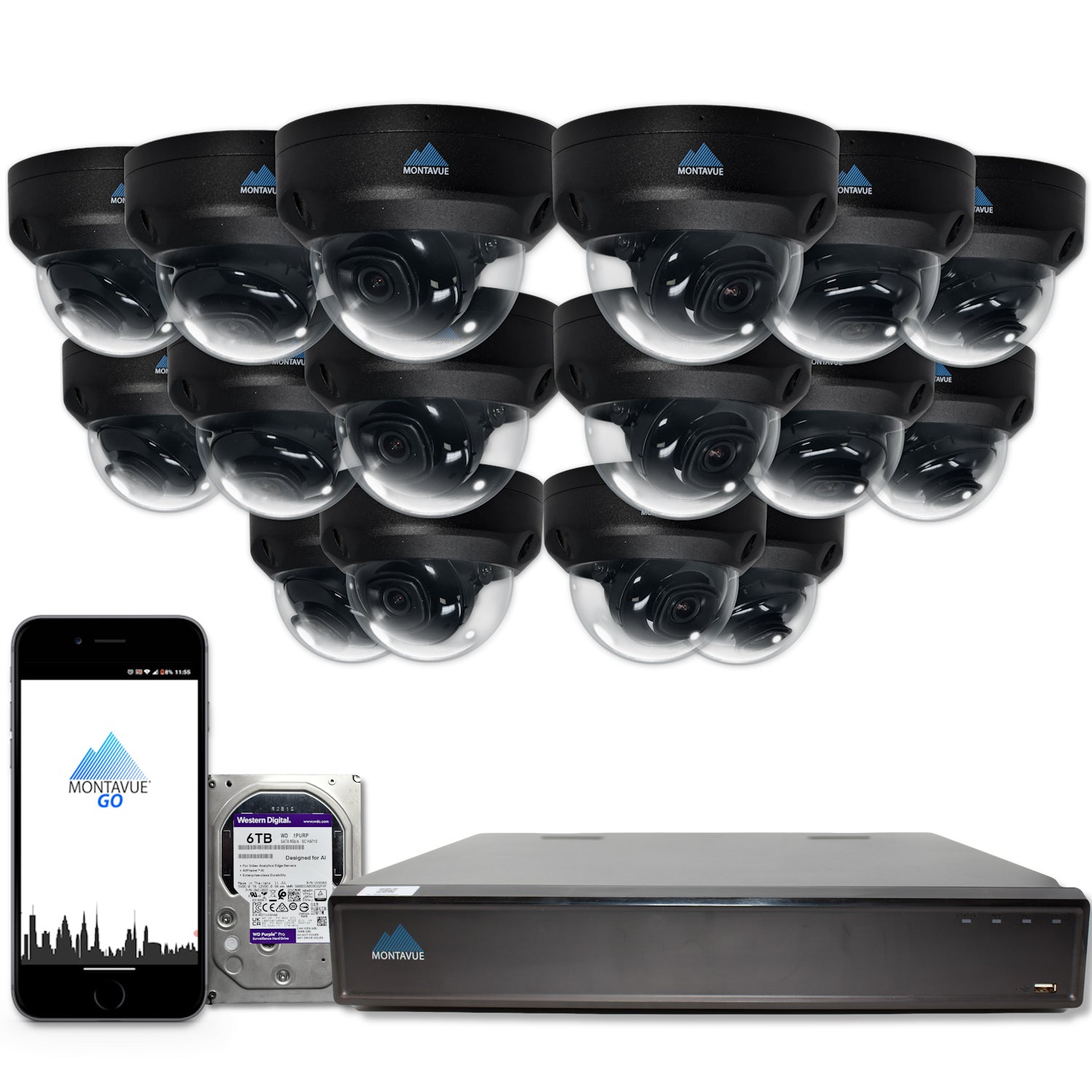

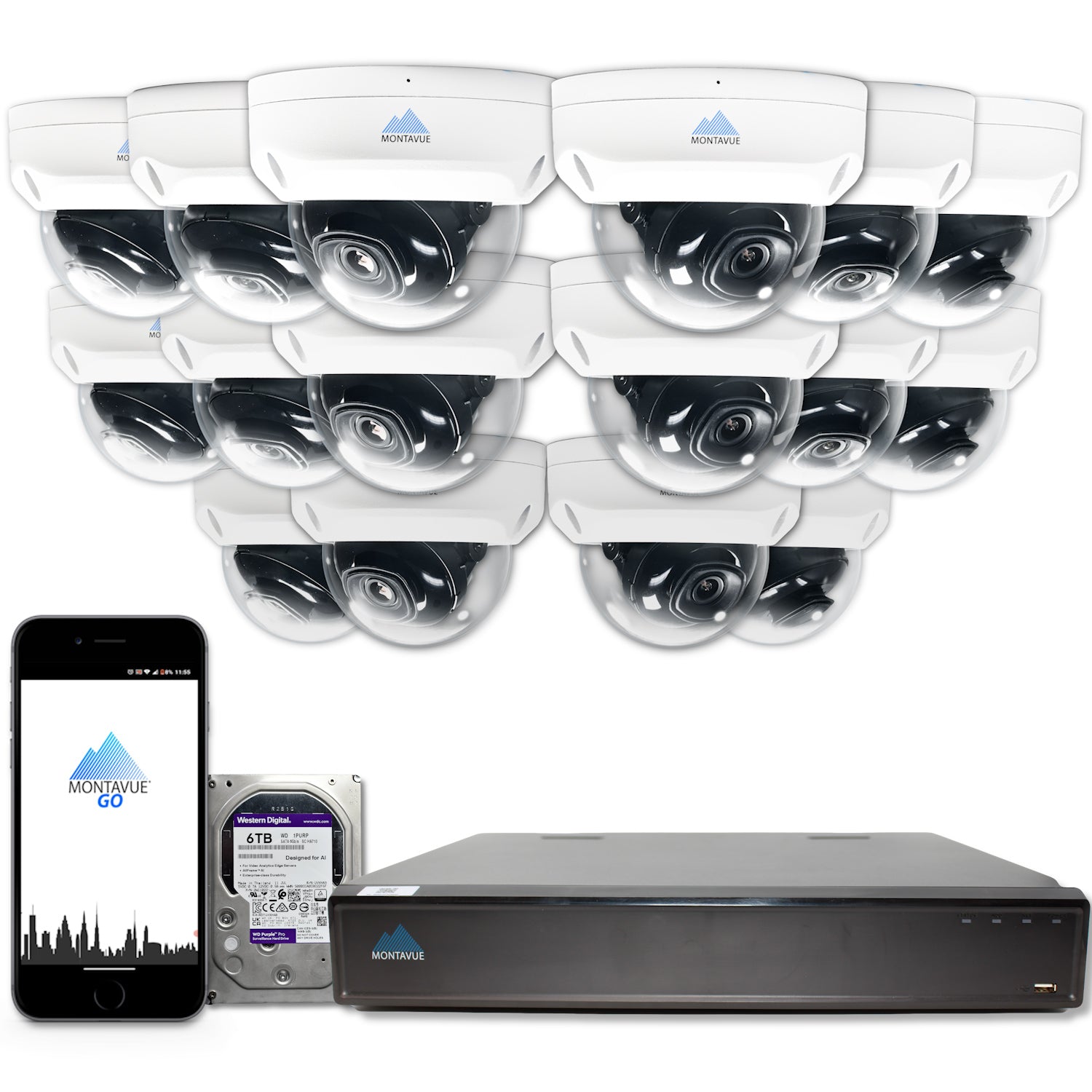

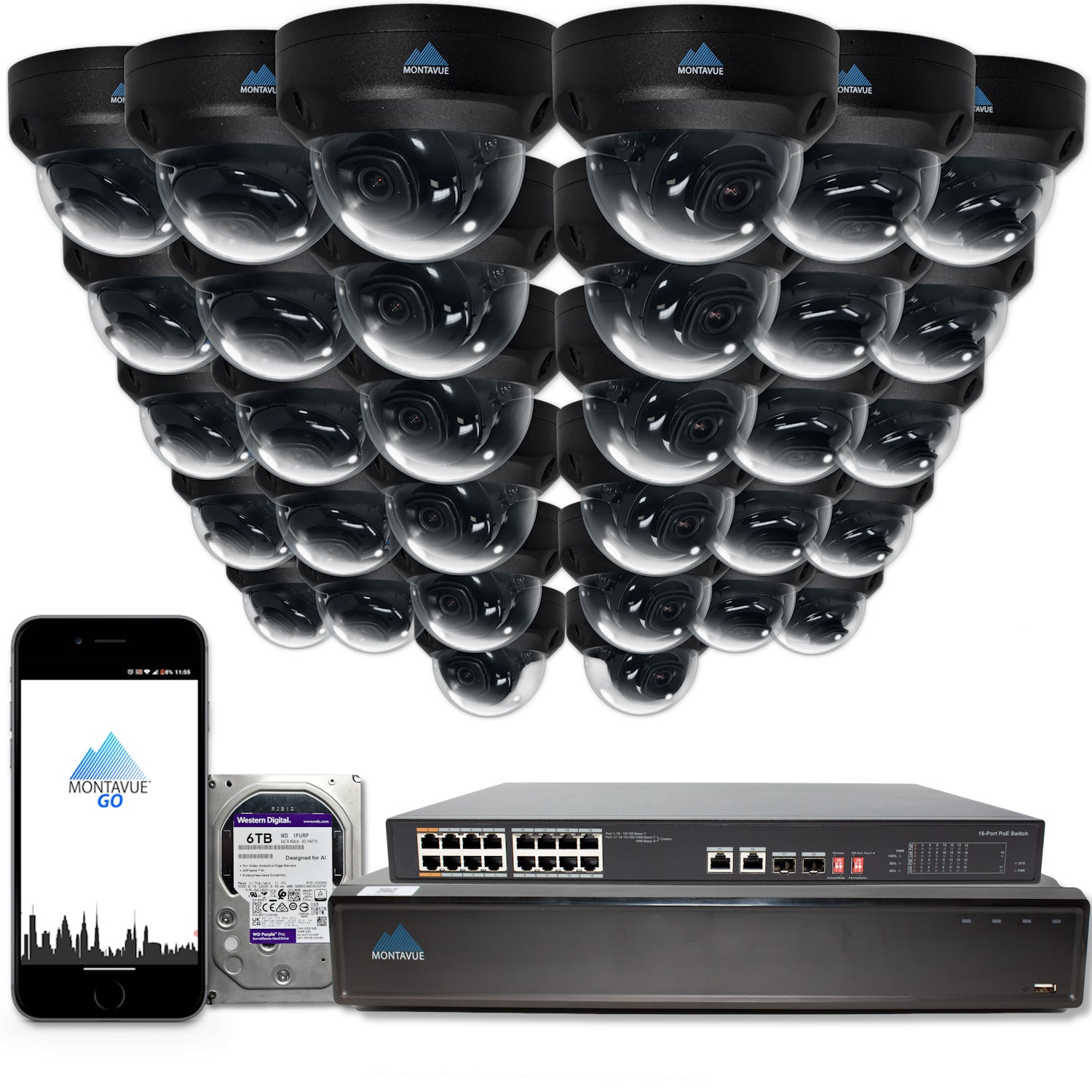

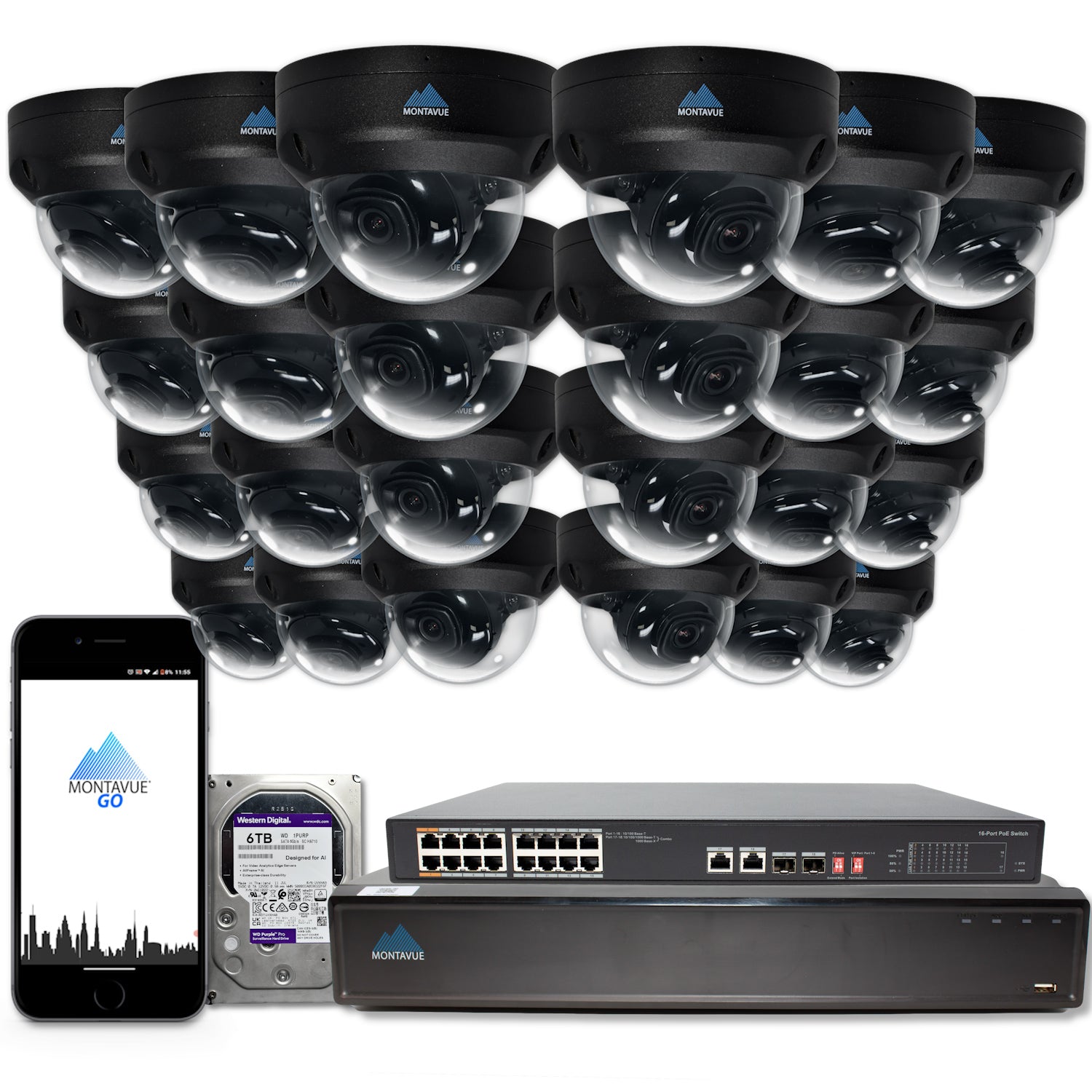

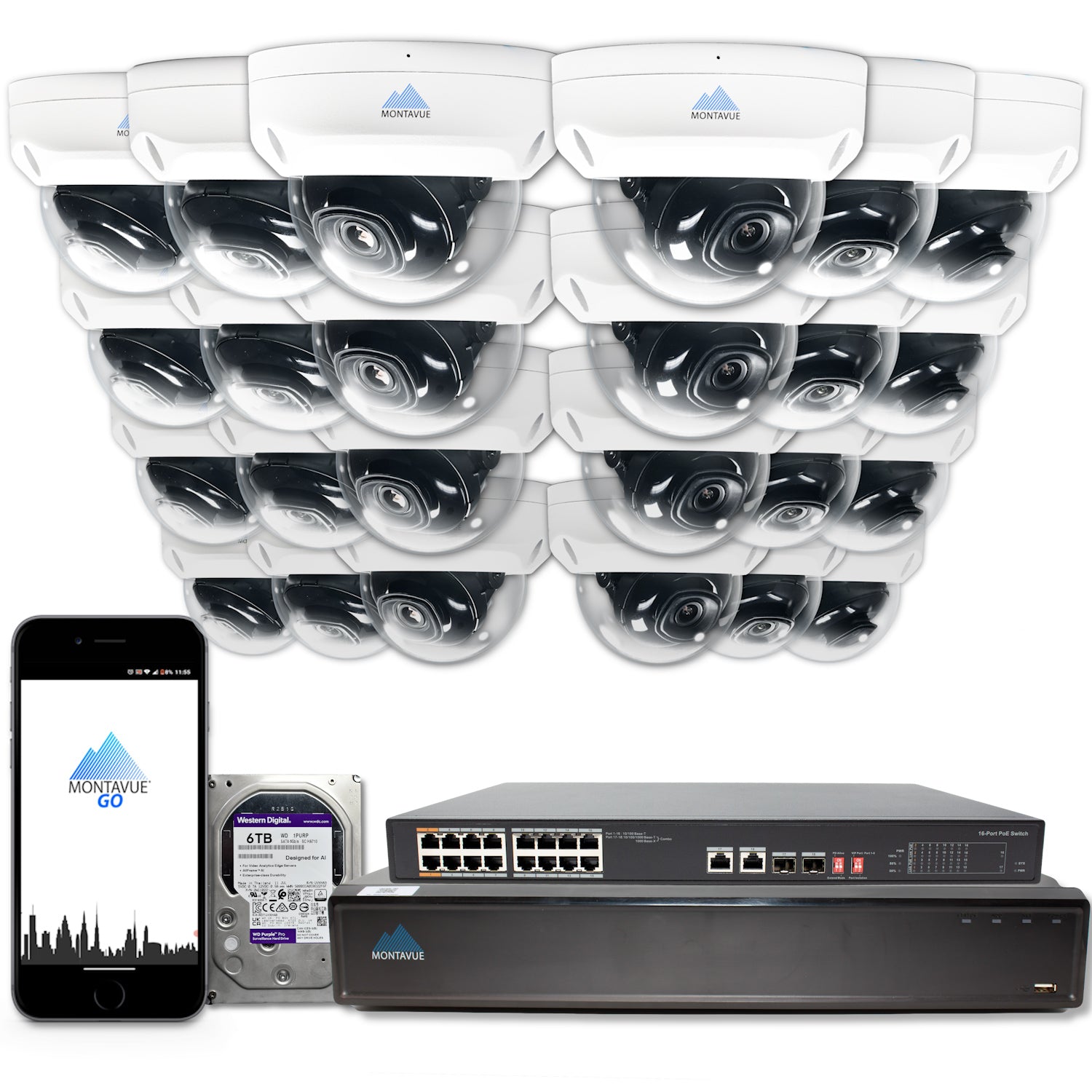

• MNR4432-16P-AI NVR

• MAS16P135 Switch for the 24 camera and 32 camera

• 6TB Surveillance Grade HDD with maximum storage capacity of 64TB.
• MTD4095-AI-SMD-DI Cameras
• 100ft Cat5e Cable per camera
• HDMI Cable and Network Cable

• USB Mouse
• Camera mounting template decal
• Screws and Anchors
• Allen Wrench
• Water Resistant Casing for PoE connection

Click Here to Download Camera Specifications

Click Here to Download NVR Specifications
