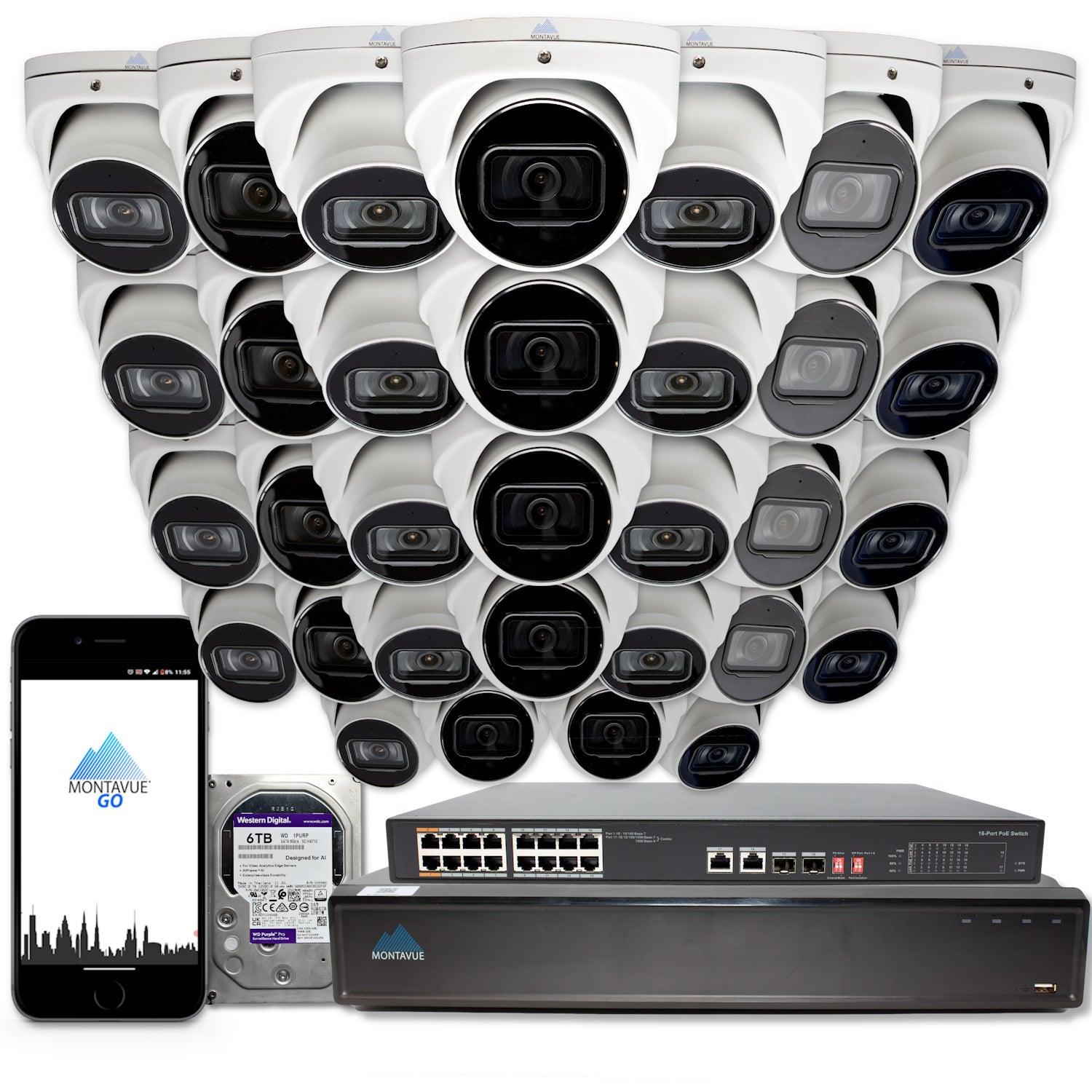

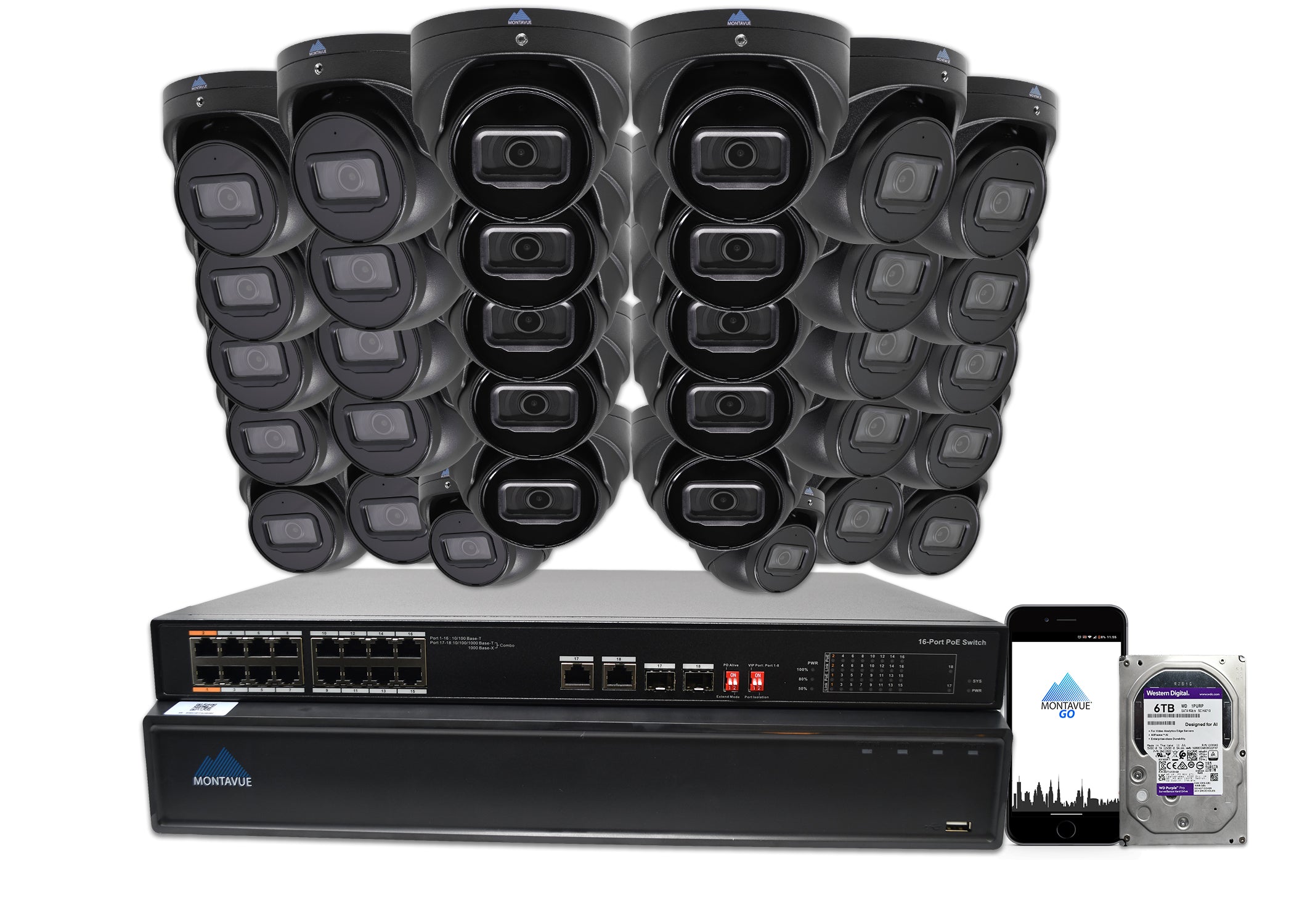

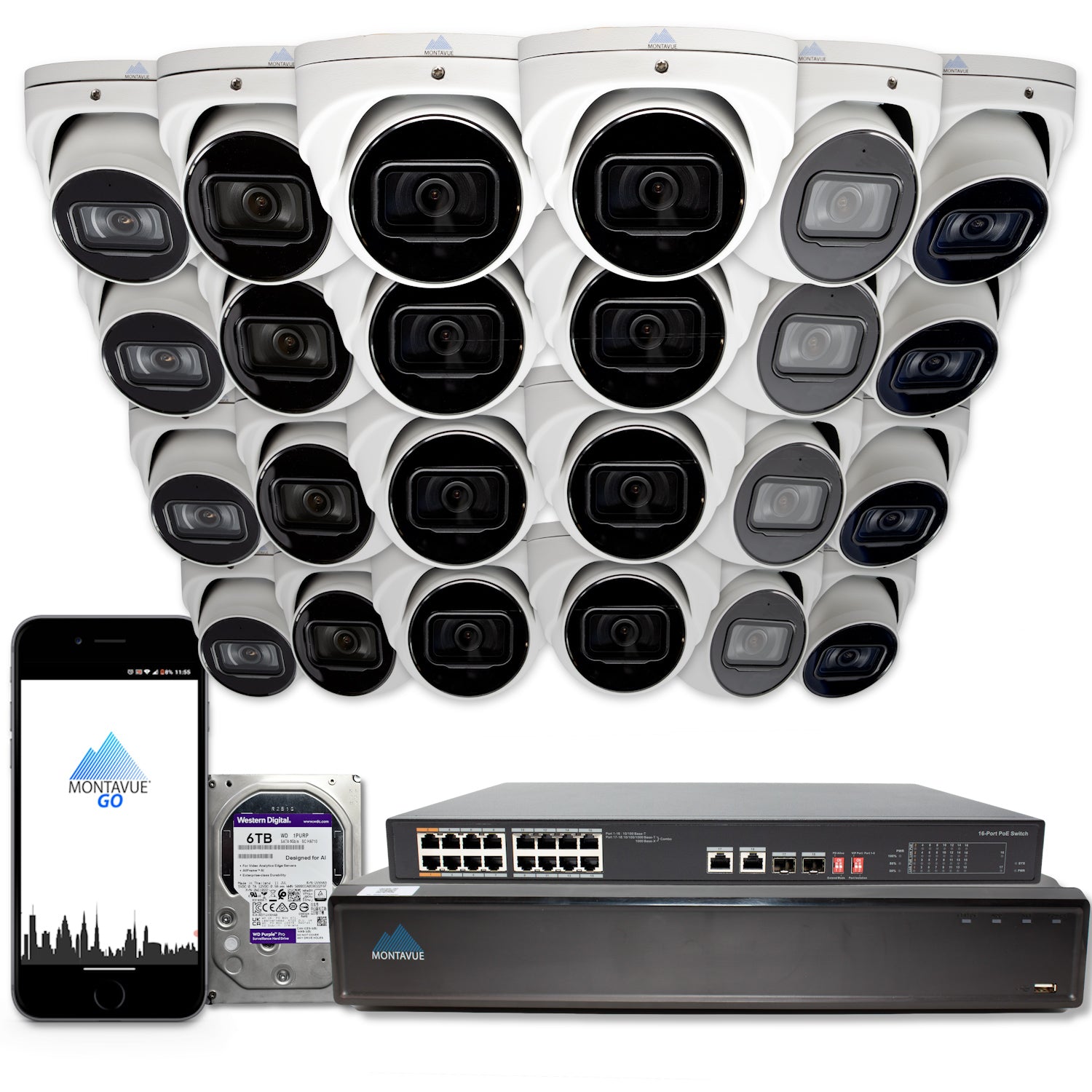

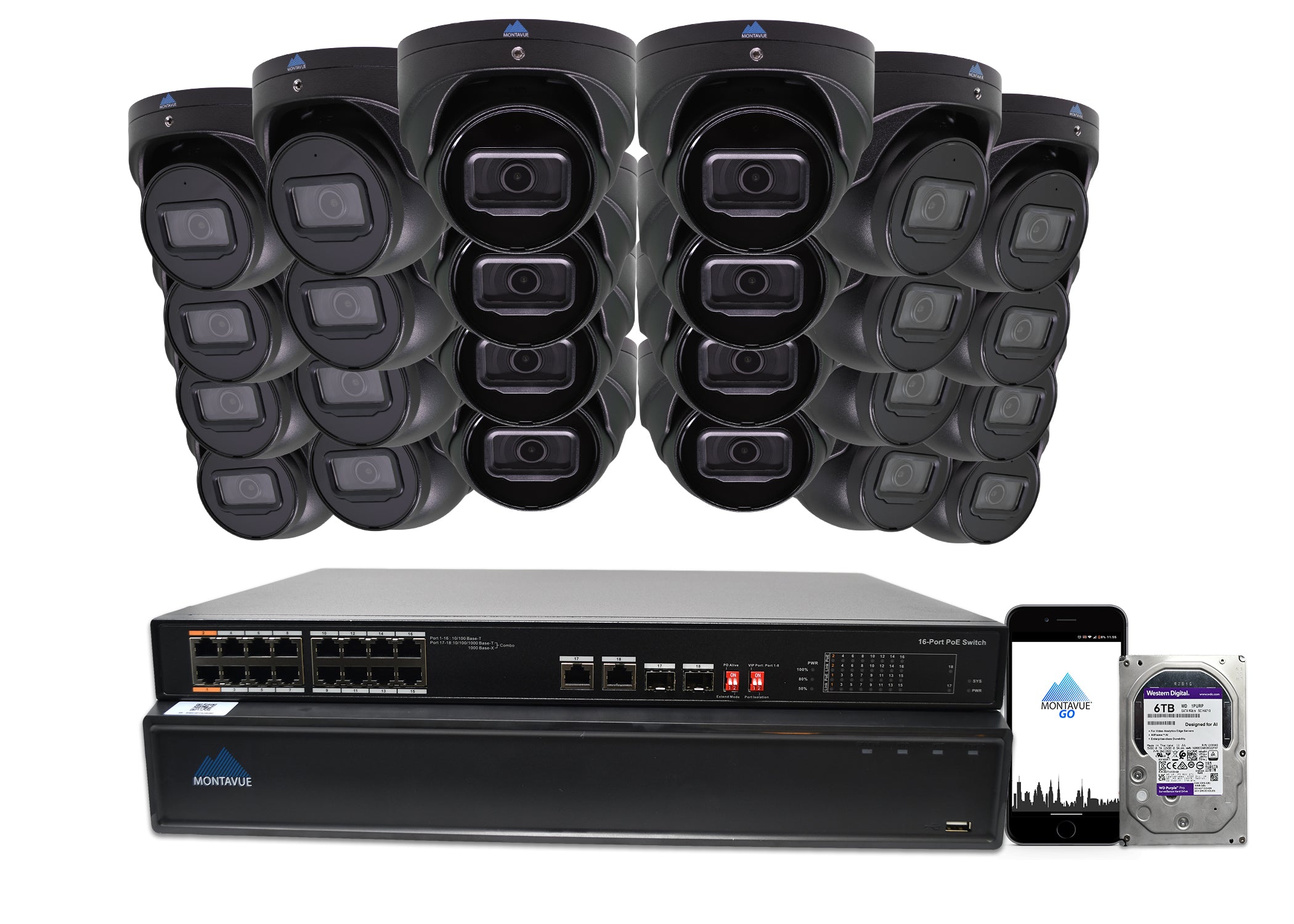

MTT8106-SMD Package | 8MP 4K Smart Motion Turret Cameras and 32 Channel NVR with 6TB HDD

32 Channel 4 Series AI NVR

The 32 channel 4 Series NVRs are capable of recording at 4K resolution at 30 frames per second, 4K live display, H 265+ recording, and 280Mbps. The 32 channel NVR has 4 hard drive bays that support up to 16TB each making the total storage capacity 64TB of internal storage.

This NVR has 16 PoE ports built-in with the remaining cameras to be connected to a 16 port PoE switch which will be included with any purchase of a package with 24 & 32 cameras.

The 4 Series 32 channel NVR has AI abilities that can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI functionality. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and heat map features of our fisheye cameras. Supports up to two monitors for multi-screen viewing using 1 HDMI output and 1 VGA output.

MTT8106-SMD

The MTT8106 is a multi-functional everyday use camera for all types of scenarios. Recording at 4K with 20 frames per second, it will capture high definition recordings while maintaining smooth video speeds. The lens has a viewing angle of 105° which means you will capture a wide view to leave nothing unsecured. Equipped with smart motion detect +, a built-in mic for recording audio and IR LED night vision with 100ft illumination distance. Also features an IP67 weatherproof aluminim metal body enabling it to be placed in nearly any environment.

Smart Motion Detect+ & Perimeter Protection

The MTT8106-SMD is equipped with smart motion detect+ and perimeter protection intelligent video surveillance (IVS). This means there is AI built into the camera that recognizes moving objects as human, vehicle, or neither. Ultimately, this helps eliminate false notifications to your smartphone and makes searching through recordings much more efficient. SMD+ scans the entire image, notifying the user when humans/vehicles enter the scene. Perimeter protection uses a digital line called a tripwire, this acts as a perimeter trigger, tripwires only trigger when a human/vehicle crosses through the line or into the intrusion area.

IR LED Nightvision

Equipped with IR LED nightvision, the MTT8106-SMD has a range of 100ft through pure darkness. The camera will activate night vision automatically when the sensors detect there is not enough available light to produce a full color image. The infrared light is invisible to humans, giving you the best advantage at night.

Built-In Microphone

The MTT8106-SMD comes with a built-in microphone for audio recording. Capture any audio from your events whether the sound is coming from across the street or it's a conversation in the yard. The built-in mic has directional abilities, meaning that it is more effecient and sensitive towards the area that the camera is pointed, this ensures you only hear what is important and background noise is kept to a minimum. Live audio can be transmitted to your remote devices on Montavue GO or listened to from your NVR. If recording audio is not necessary or allowed in your location, deactivation is fast and simple.

6TB Included Storage

The MNR443-16P-AI comes with 4 hard drive bays capable of holding up to 16TB of storage capacity each, making the total capacity for this NVR 64TB. This package will come with a 6TB hard drive that will be installed prior to shipping.

The MTT8106-SMD has a slot for a micro SD card. This is useful for acting as backup storage if anything were to happen to the NVR or hard drive within, in that event, each camera would have independent recordings on their micro SD card that you could refer to. These micro SD cards can typically record up to 3-4 days worth of video.

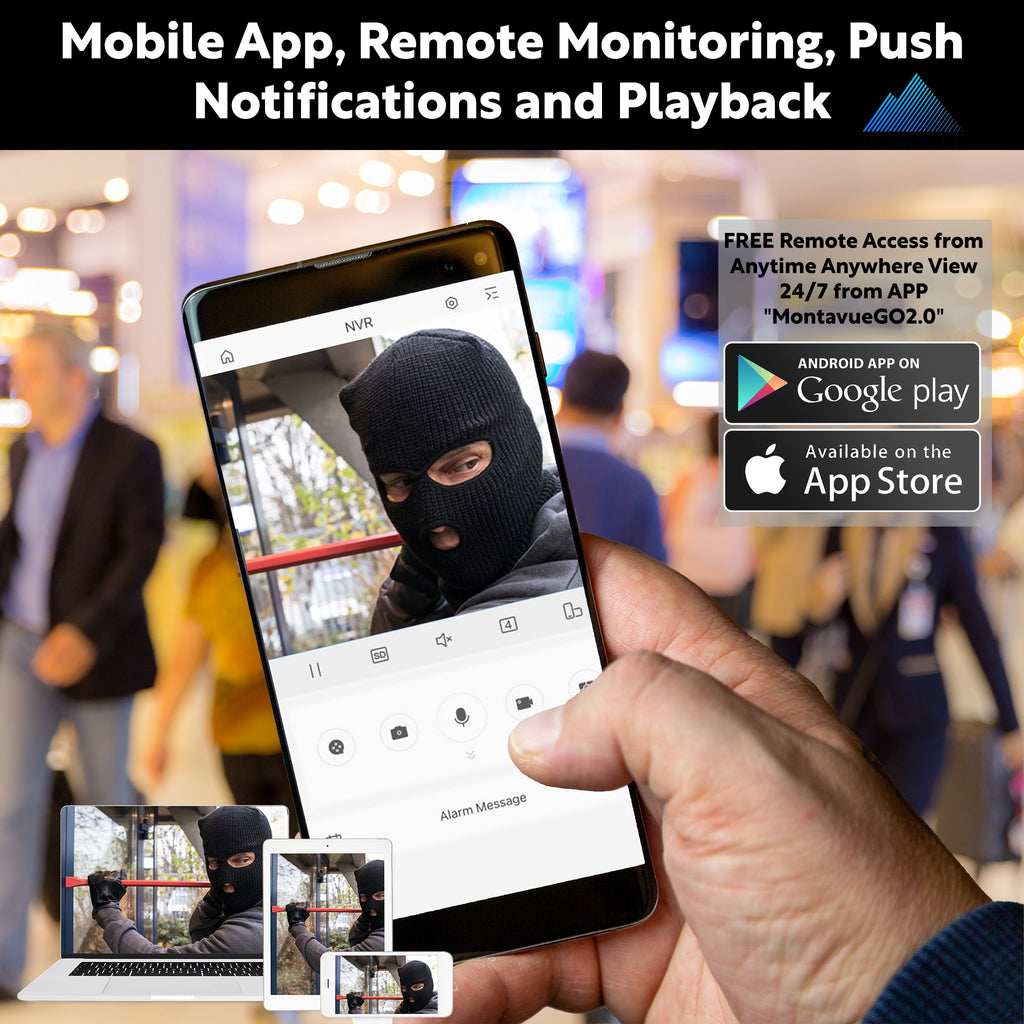

Remote Connectivity

Montavue NVRs can connect to your local network and internet which enables the ability to view your system remotely using our free Montavue GO app. Montavue GO is available on smartphone, PC, or tablet and can be accessed 24/7 for free as long as you have an internet signal to your NVR and viewing device. Smart notifications can be sent to your mobile device when humans or vehicles are identified by your Montavue camera system, enabling you to respond to events while you're away.

AI by NVR

The MNR4432-16P-AI NVR from Montavue can employ AI abilities to cameras that otherwise would not have them. This means you can use SMD+ Human/Vehicle recognition, Face Detection, Smart Search, and Perimeter Protection on the MTT8106-SMD. All of these abilites are harnessed through the NVR and can produce more efficient playback, increased identification accuracy, and reduce false notifications to your mobile device. The 4 Series 32 channel NVR can simultaneously perform 1 channel face detection, 2 channel perimeter protection , and 4 channel SMD+ capability, all without any built-in camera AI ability being required. It's also capable of hosting advanced AI cameras like our ANPR license plate reading camera and the heat map features of our fisheye cameras.

• MNR4432-16P-AI NVR

• MAS16P135 Switch for the 24 camera and 32 camera systems

• 6TB Surveillance Grade HDD with maximum storage capacity of 64TB
• MTT8106-SMD Cameras
• 100ft Cat5e Cable per camera
• HDMI Cable and Network Cable

• USB Mouse
• Camera mounting template decal
• Screws and Anchors
• Allen Wrench
• Water Resistant Casing for PoE connection

Click Here to Download NVR Specifications
