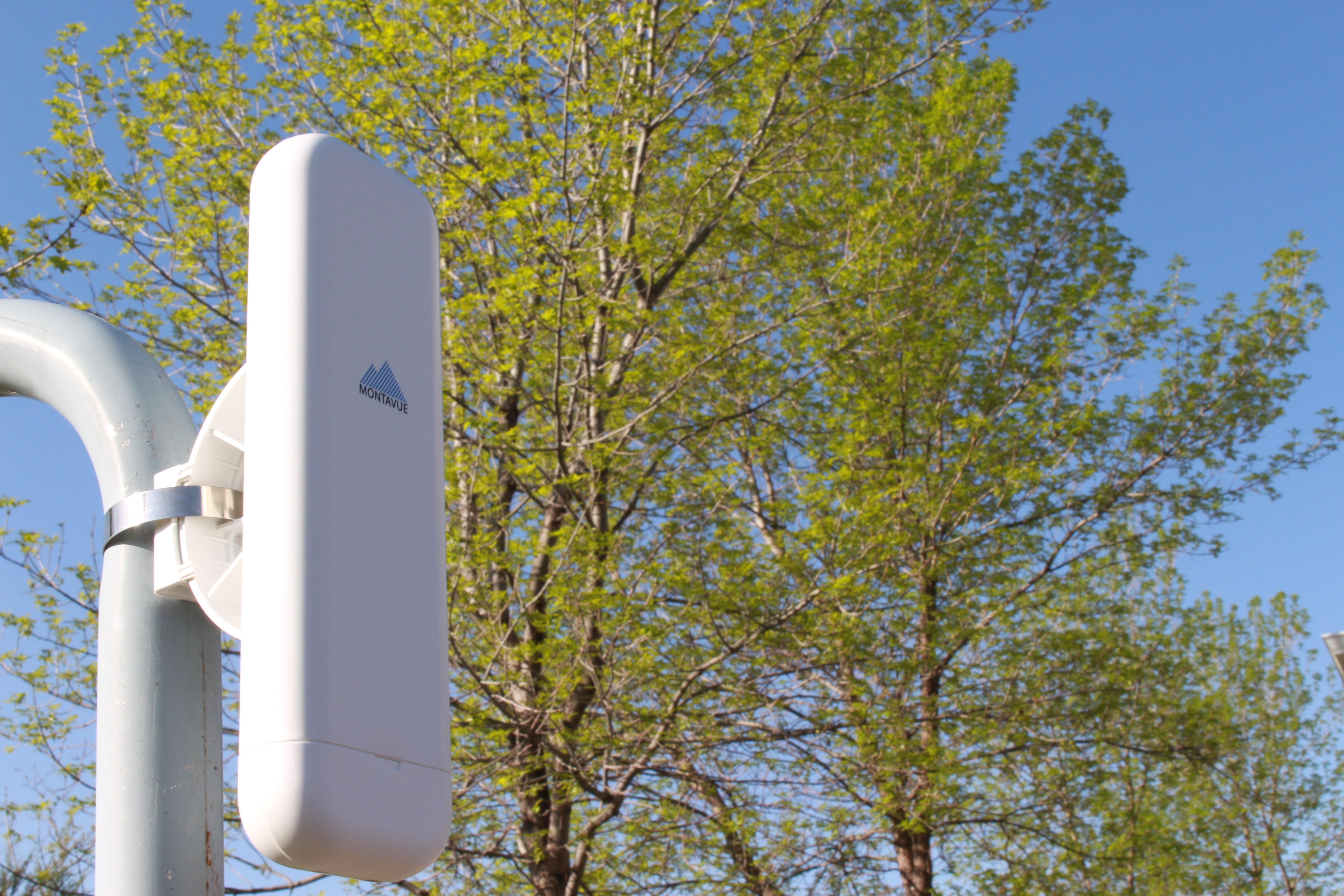

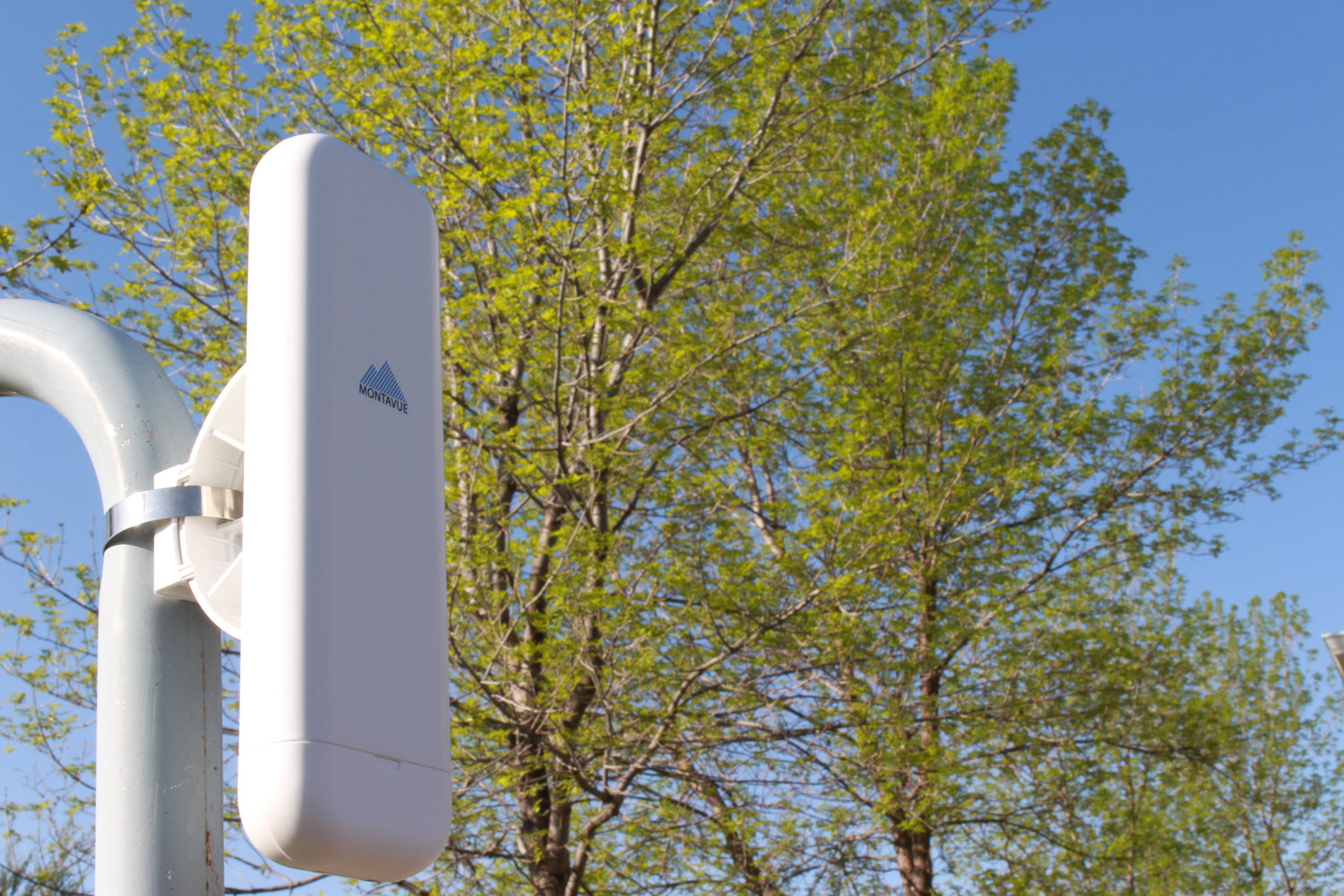

Connecting surveillance systems across large distances doesn’t have to involve extensive cabling and costly infrastructure. The MAWB-03P Wireless Bridge offers a high-performance, long-range solution that ensures reliable, high-speed connectivity without the complexities of traditional wiring.
Why Use a Wireless Bridge?
A wireless bridge creates a seamless connection between two points over a wireless signal, eliminating the need for lengthy cable runs. Here's how it compares to traditional wired setups:
|
Feature |
Wireless (MAWB-03P) |
Wired Connections |
|
Cost |
Lower installation costs |
Higher due to labor & materials |
|
Flexibility |
Easy to relocate and adjust |
Permanent and difficult to modify |
|
Installation Time |
Quick and straightforward |
Time-consuming |
|
Range |
Up to 1.86 miles (line of sight) |
Limited by cable length |
|
Durability |
Weather-resistant design |
Susceptible to wear |
Key Benefits of the MAWB-03P Wireless Bridge
-
Extended Range and Speed
-
The MAWB-03P operates on the 5.8 GHz band with 802.11ac technology, providing speeds up to 867 Mbps over distances of up to 1.86 miles.
-
Weatherproof and Durable
-
Designed for outdoor use, the MAWB-03P features an IP65 rating and operates in temperatures ranging from –22°F to +149°F, ensuring consistent performance in extreme environments.
-
Power over Ethernet (PoE)
-
Simplifies installation by using Ethernet cables for both power and data transfer, eliminating the need for separate power lines.
Wireless Bridge Polarization: Why It Matters
To achieve optimal performance, both units of the wireless bridge must be aligned with the same polarization. This means both units should either be in a vertical or horizontal orientation. Misaligned polarization can significantly reduce communication efficiency, leading to a weaker signal and lower data transfer rates. Proper alignment is crucial for ensuring reliable connectivity and maximizing performance.
Ideal Applications for the MAWB-03P
The MAWB-03P is perfect for:
-
Large Outdoor Areas: Parks, campuses, and recreational spaces.
-
Industrial and Commercial Sites: Connecting separate buildings or facilities.
-
Surveillance in Remote Locations: Enabling monitoring in areas where wiring is impractical.
The Wireless Advantage and Setup Video
Whether you’re enhancing an existing network or deploying a new one, the MAWB-03P Wireless Bridge simplifies the process with high-speed performance, long-range capabilities, and straightforward installation.
Transform your surveillance infrastructure today with the MAWB-03P. For more details or installation assistance, contact us at 406-272-3479.
