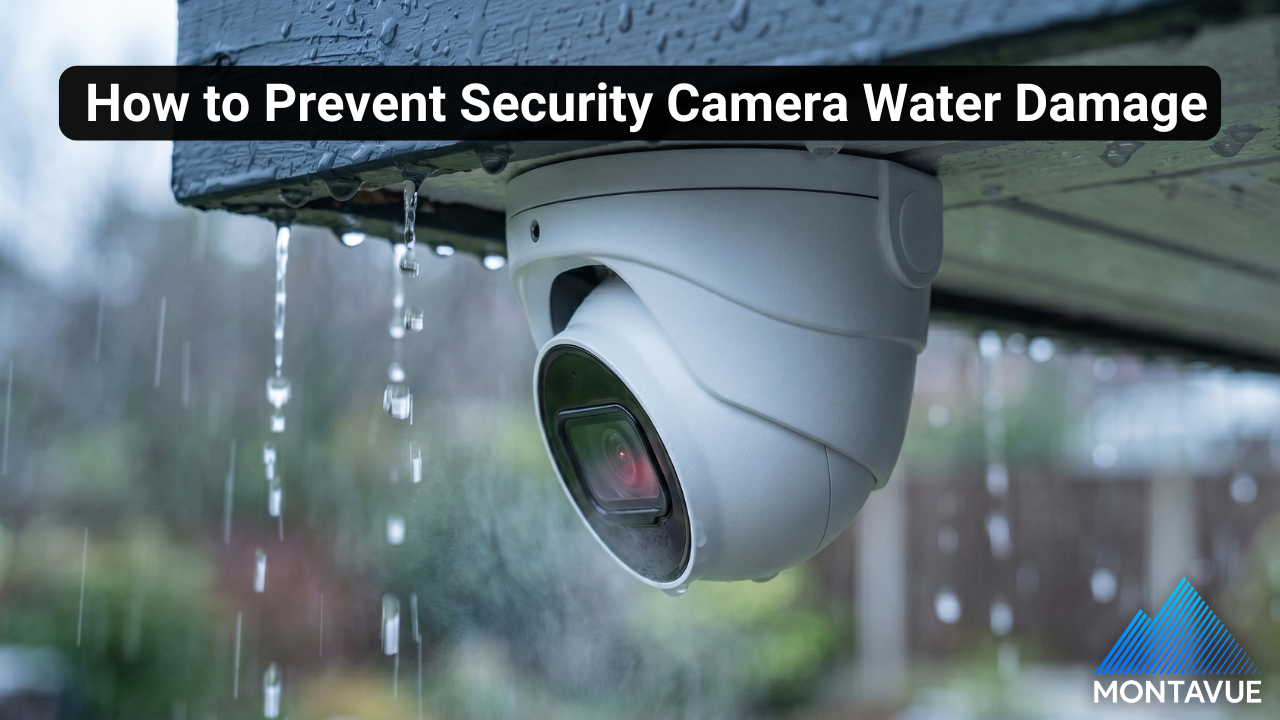

How to Prevent Security Camera Water Damage in 2026
All Montavue cameras, except our indoor PTZ camera, are weatherproof with IP67 ratings .However, one of the most common reasons for camera failure is moisture breaching the delicate ethernet connection between the camera and the Cat5e cable. By taking a few extra installation steps, you can ensure your surveillance system operates flawlessly in any weather.
If water breaches this connection, it can cause corrosion on the metal pins inside, severely interfering with power and data delivery. In the worst-case scenario, a wet connection can cause a short circuit and completely ruin the camera. It is vital to understand that water damage at the connection point is considered an installation error. Because of this, it is not covered by standard warranty policies across the industry.
Proactive Steps to Prevent Water Damage
To guarantee your Montavue PoE Cameras survive the harshest outdoor environments, adhere to these professional installation techniques.
1. Install Weatherproof Junction Boxes
The absolute most effective way to protect your connections is by using professional junction boxes: (Montavue Junction Boxes and Accessories). A small investment in mounting hardware now will save you from costly replacements later.
-
Protective Housing: The camera mounts directly to the box, providing a safe, dry, and spacious housing for all exposed cables.
-
Seal the Edges: Always apply a continuous bead of silicone around the junction box where it meets the mounting surface to block moisture completely.
2. Conceal Cables and Apply Dielectric Grease
If you are not using a junction box, you must ensure that no part of the cable is left exposed to the elements. The less a cable is exposed to sun, ice, and rain, the longer the camera will last.
-
Run Cables Internally: To completely shield your ethernet lines from rain, snow, and extreme temperatures, route the cables directly through your walls or ceilings so they remain dry inside your building's structure.
-
Use Dielectric Grease: Brush a small amount of dielectric grease directly into the ethernet socket before plugging it in to naturally repel moisture. Dielectric grease is an inexpensive, waterproof silicone paste that you can easily find at any local hardware or auto parts store.
-
Silicone the Base: Apply outdoor-grade silicone around the base of the camera mount for a watertight seal against your siding or soffit.
3. Utilize Weather-Resistant Connector Shields
Most IP cameras on the market include a weather-resistant connector shield. For Montavue systems, it is often found pre-installed on the provided Cat5e cables, or included in the box if you are terminating your own cables.
-
Understand the Limits: These plastic shields are only rated as weather-resistant, not entirely waterproof. Standard IP weather rating guidelines.
-
Avoid Direct Exposure: Never leave the shielded connection dangling out in the open where it can be submerged or constantly battered by heavy rain.
4. Reinforce with Tape and Silicone
For an inexpensive layer of extra defense, you can easily reinforce the connector shield itself. This quick step can make a massive difference in the lifespan of your hardware.
-
Wrap the Seams: Tightly wrap the ends and the middle seam of the connector shield with high-quality, weather-rated electrical tape.
-
Silicone the Gaps: Add a dab of silicone to the ends of the tape to prevent it from peeling or unraveling in extreme temperatures.
Secure Your System for the Long Haul
We believe it is always better to be safe than sorry when installing your commercial-grade security network. Taking a few extra minutes to properly weatherproof your connections will save you the headache of replacing a dead camera.
