- MNR5864-AI NVR
- Two MAS16P135 switches for a 32 camera, Three MAS16P135 switches for a 48 camera and Four MAS16P135 switches for a 64 camera
- 10TB Surveillance Grade HDD/ with maximum storage capacity of 128TB
- MTB8105 Cameras
- 100ft Cat5e Cable per camera
- HDMI Cable and Network Cable
Description
What's Included
- USB Mount
- Camera mounting template decal
- Screws and Anchors
- Allen Wrench
- Water Resistant Casing for PoE connection
Specifications for MTB8105 (white) or - B(black)
| Resolution | 8MP (4K) 3840 x 2160 |
| Image Sensor | 1/2.7” 8 Megapixel progressive CMOS |
| Illumination Distance | 98ft (IR) |
| Min Illumination | 0.009 Lux@F2.0 |
| IIlluminator Number | 1(IR LED) |
| DORI Distance | Detect: 245.1ft Observe: 91.1ft Recognize: 48.9ft Identify 24.6ft |

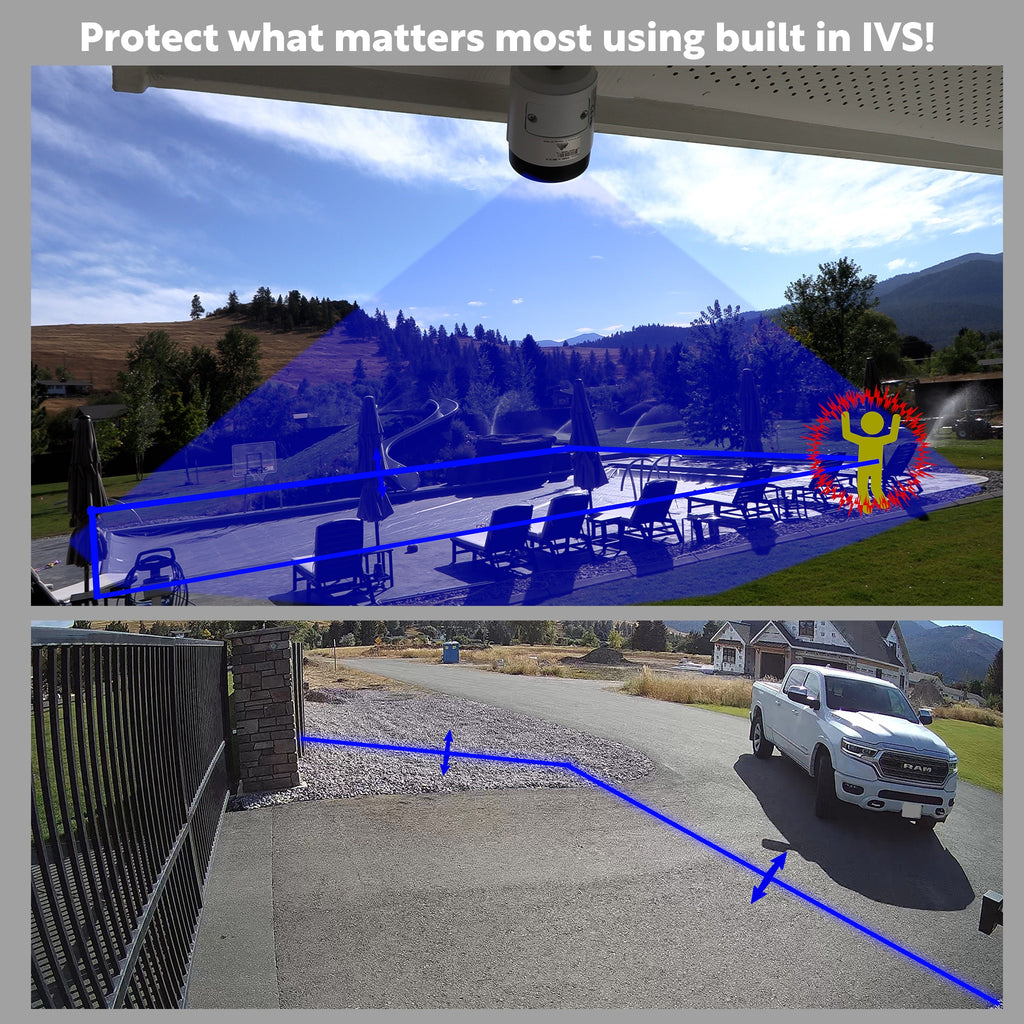

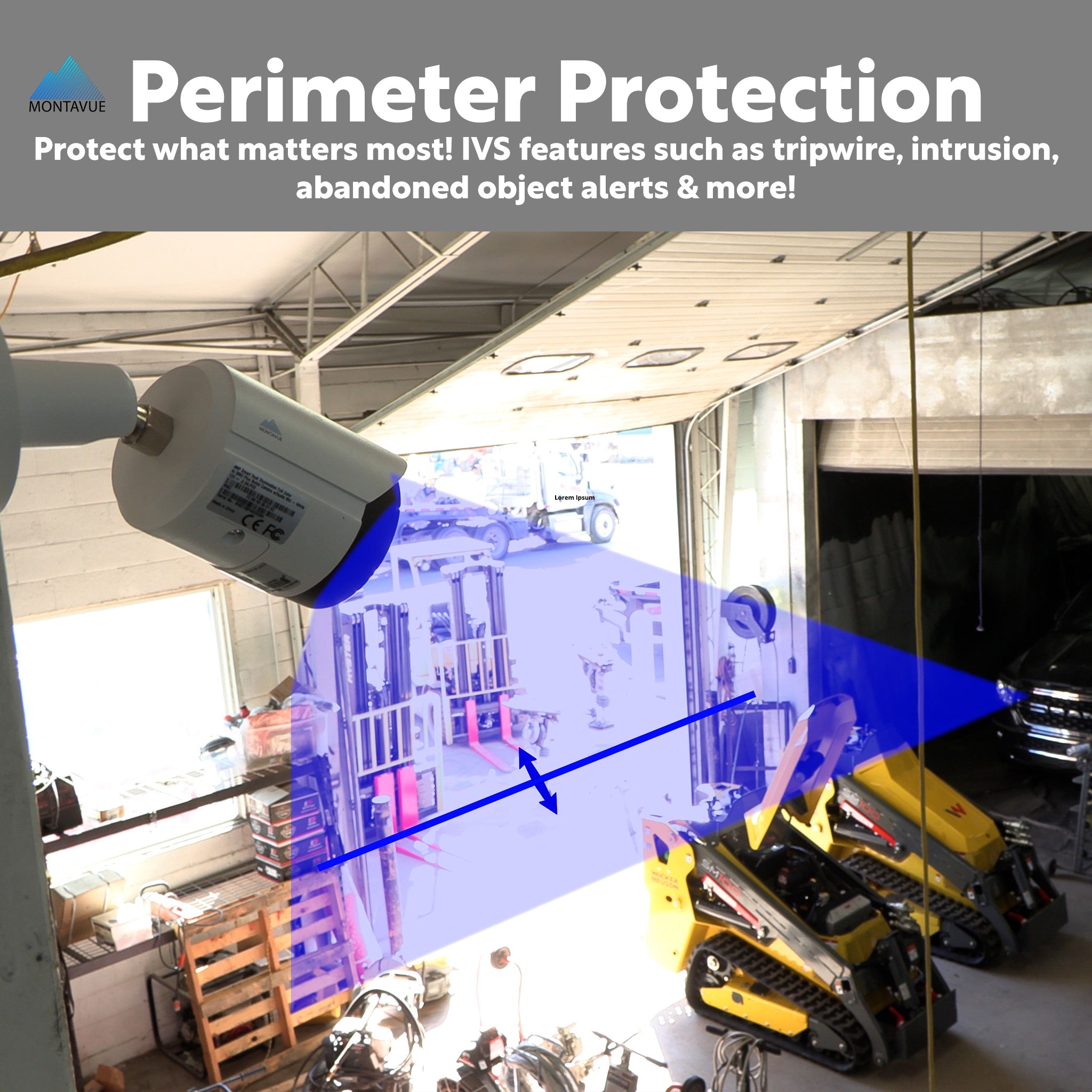

| IVS (perimeter protection) | Intrusion, tripwire |
| Video Compression | H.265, H.264, H.264B, H.265, MJPEG |
| Stream Capability | 2 Streams |
| BLC, HLC, WDR | Yes, Yes, Yes 120db |
| Focal Length | 2.8mm |
| Storage | NVR or up to 256GB Max SD Card |
| Power Supply | PoE (802.3af) or 12 VDC |
| Power Consumption | Max: 5.5 W (PoE) |
| Operating Temperature | –40 °F to +140 °F |
| Ingress Protection IP Rating | IP67 |
| Casing Material | Full-Metal housing |
| Dimensions | 6.54" x 2.76" |
Montavue MTB8105-C 4K PoE Bullet Security Camera and 4K 64 Channel NVR

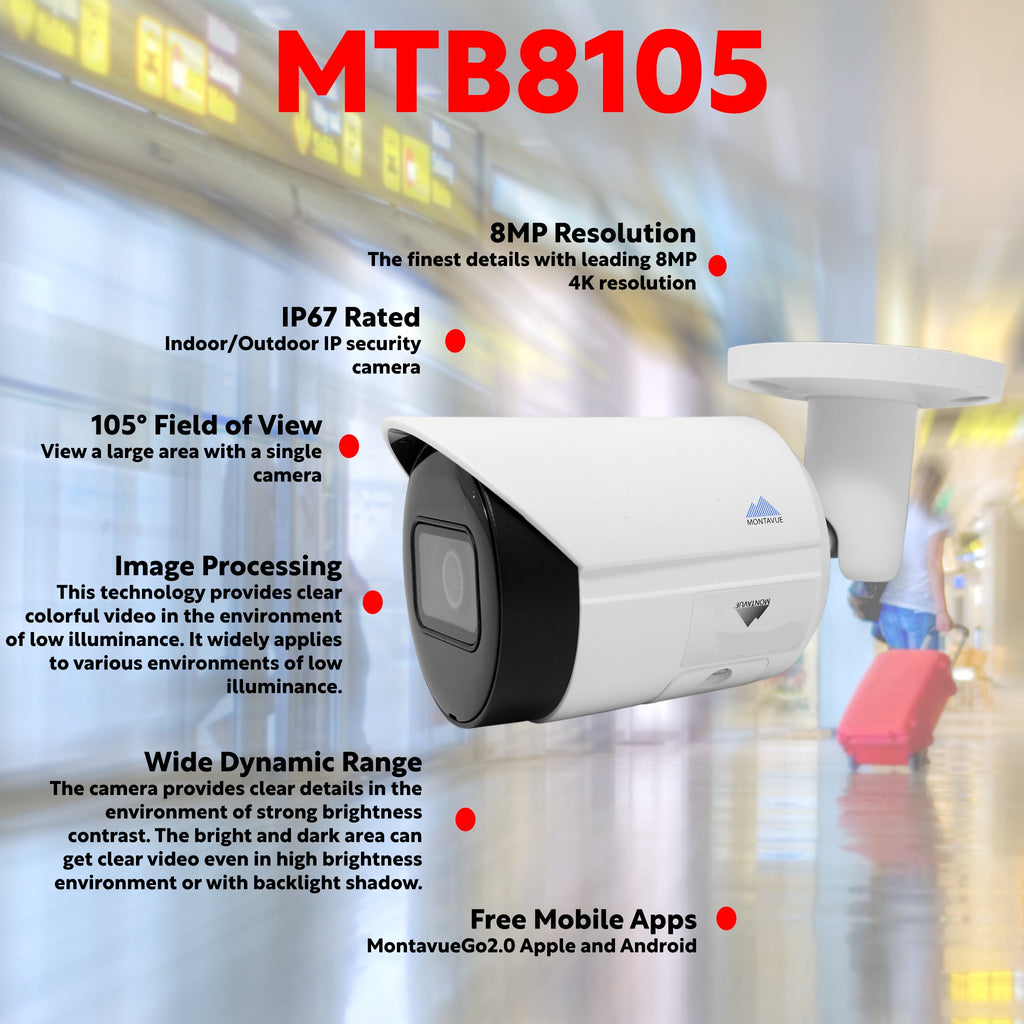

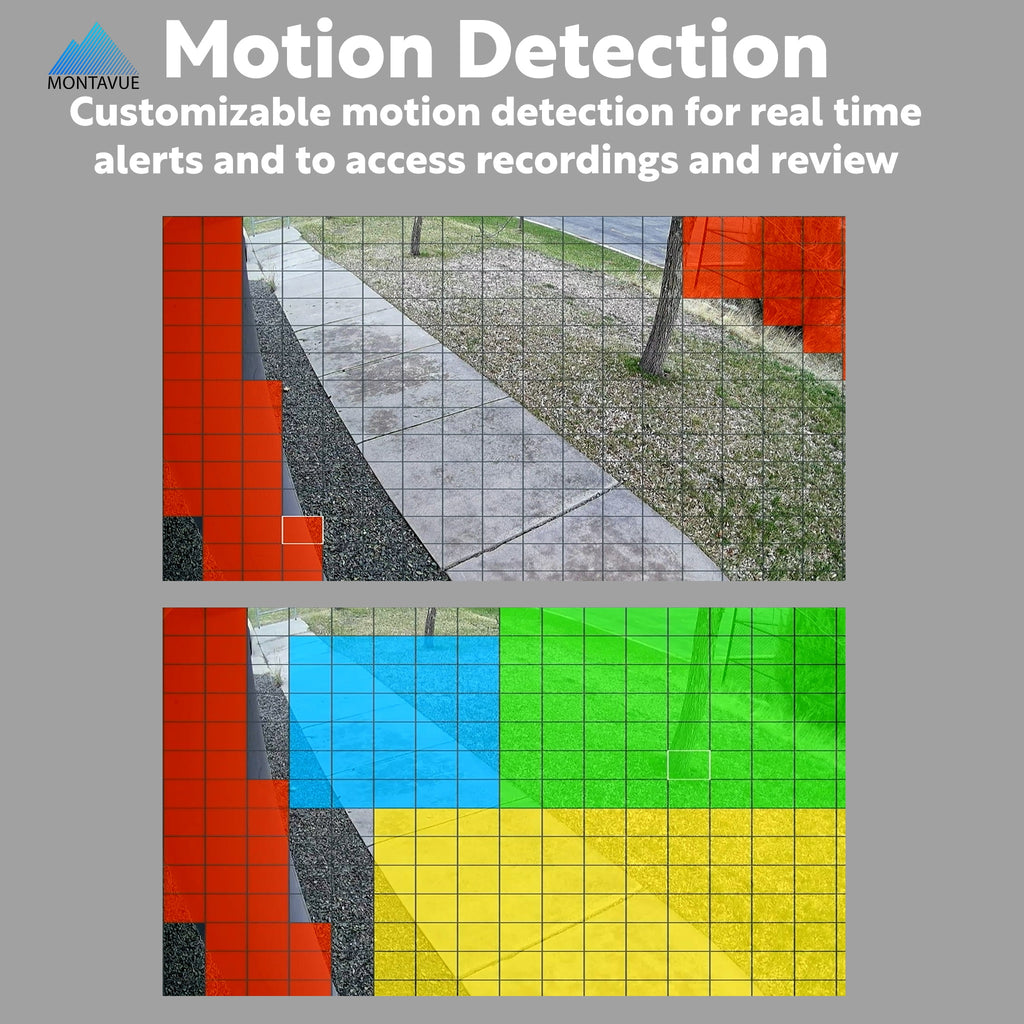

Our 4K 8MP IP PoE Bullet camera is loaded with features for an affordable price compared to the competition. This security camera is capable of 4K resolution while recording at 15FPS to ensure crisp, clean, and smooth footage. This 8MP Bullet camera contains Montavue's next generation of chips with a customizable motion detection and tripwires that allow you to know if something crosses an invisible line for perimeter protection. This secuirty camera provides IR night vision to ensure that everything is recorded day and night. This high quality security camera is built for the harshest indoor/outdoor applications with an IP67 weatherproof rating and the ability to perform in temperatures ranging from -40° F - 140° F. Our camera is made with a full metal housing and quality components and features to give you clear and crisp images day and night that will last for years to come. Setup is a breeze with our free mobile viewing app, MontavueGO, which is compatible with Mac, PC, Android and Apple. Designed to work as a stand alone camera with up to a 256GB MicroSD card or to record to any Montavue or Onvif compliant NVR, this camera is sure impress!
The included MNR5864-AI 4K NVR includes a 10TB hard drive with the ability to hold up to 160TB. This NVR has 16 PoE ports so you only need to run a single cat5e cable per camera (up to 300ft) to transmit both data a power. For packages with 32 cameras 2 MAS16P135 PoE switches are included, 48 cameras includes 3 switches, and 64 cameras includes 4 switches.
*To ensure your installation goes smoothly check out our recommended accessories listed above. Onboard storage options such as microSD cards can keep your recordings secure - even if something happens to your NVR.
