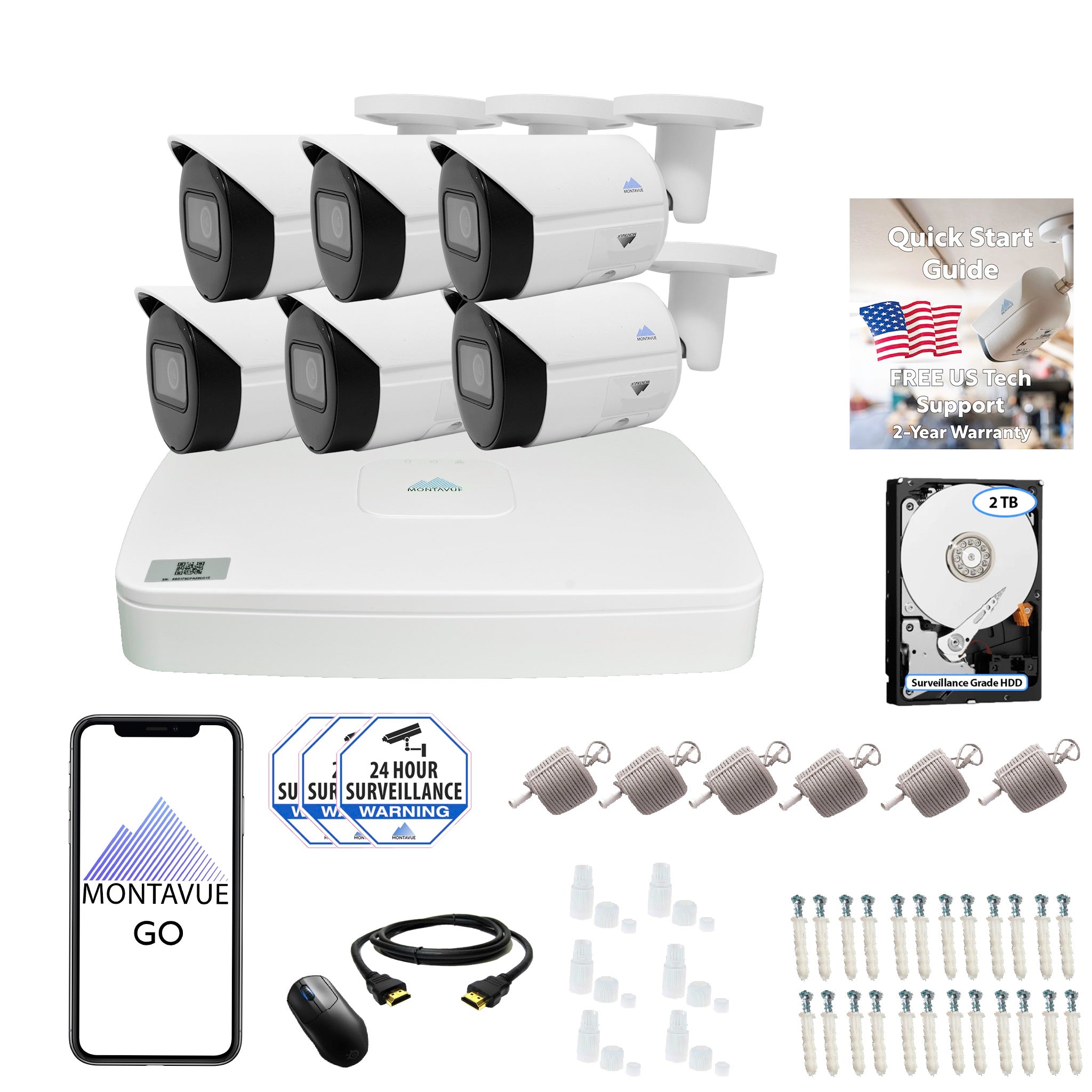

- MNR8080-8 NVR
- 2TB Surveillance Grade HDD
- MTB8105 Cameras
- 100ft Cat5e Cable per camera
- HDMI Cable and Network Cable
Description
What's Included
- USB Mouse
- Camera mounting template decal
- Screws and Anchors
- Allen Wrench
- Water Resistant Casing for PoE connection

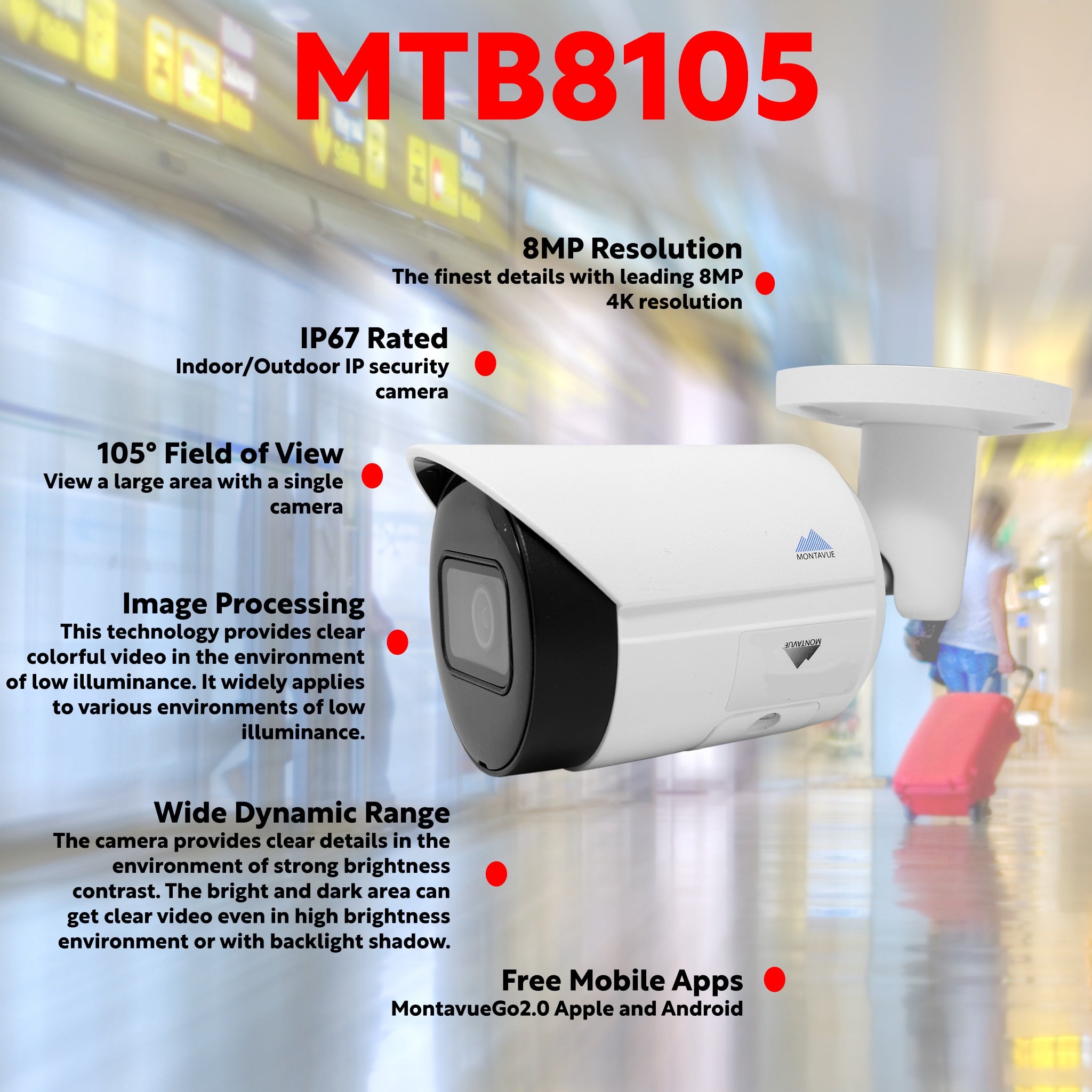

Specifications for MTB8105 (white) or - B(black)
Resolution | 8MP (4K) 3840 x 2160 |
Image Sensor / Focal Length | 1/2.7” 8Megapixel progressive CMOS |
Illumination Distance | 98ft (IR) |
Min Illumination | 0.009 Lux@F2.0 |
IIlluminator Number | 1(IR LED) |
DORI Distance | Detect: 245.1ft Observe: 91.1ft Recognize: 48.9ft Identify 24.6ft |

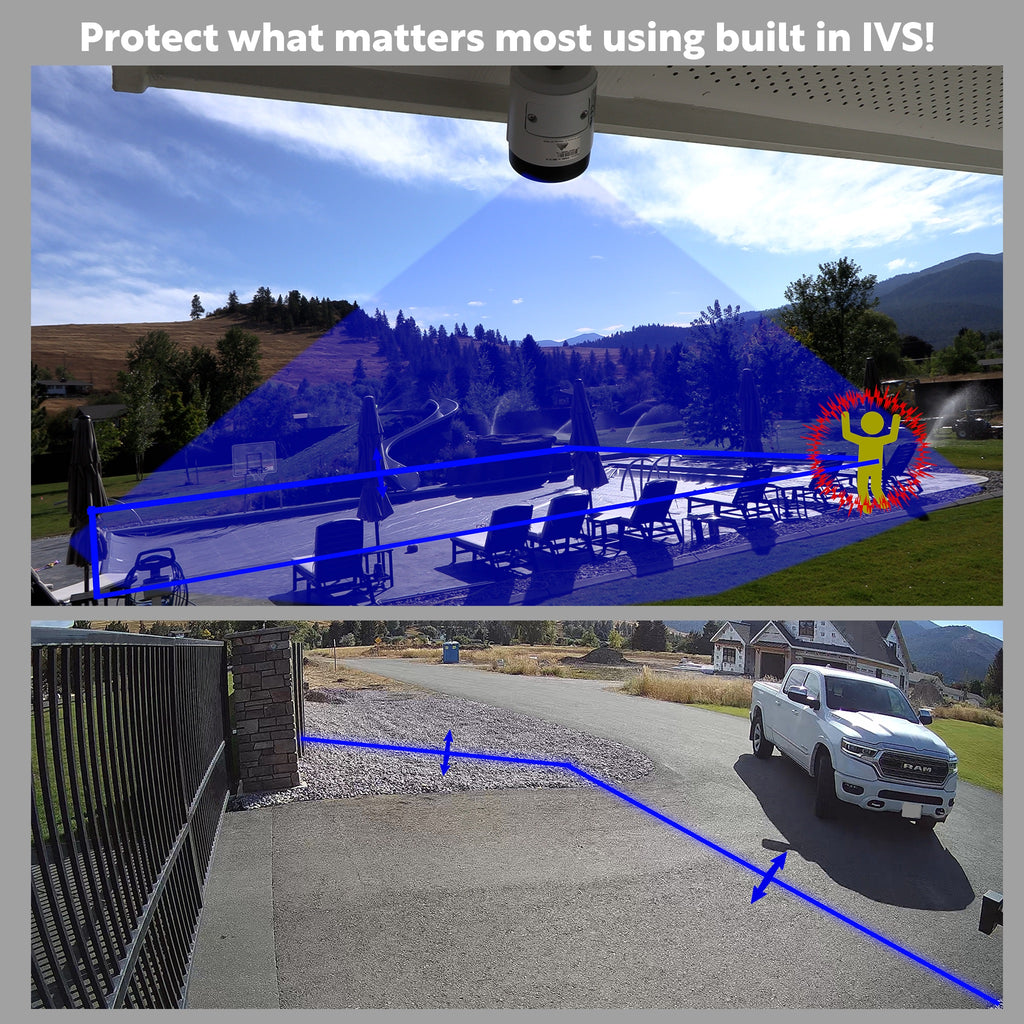

IVS (perimeter protection) | Intrusion, tripwire |
Video Compression | Smart H.265+, Smart H.264+, H.264H, H.265, H.265, MJPEG |
Stream Capability | 2 Streams |
6 | |
BLC, HLC, WDR | Yes, Yes, Yes 120db |
Product Dimensions | 6.54" x 2.76" |
Storage | NVR or up to 256GB Max SD Card |
Power Supply | PoE (802.3af) or 12 VDC |
Power Consumption | Basic 4.6 W (PoE) Max: (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
Operating Temperature | –40 °F to +140 °F |
Ingress Protection IP Rating | IP67 |
Casing Material | Full-Metal housing |
Montavue MTB8105-C 4K PoE Bullet Security Camera and 4K 8 Channel NVR

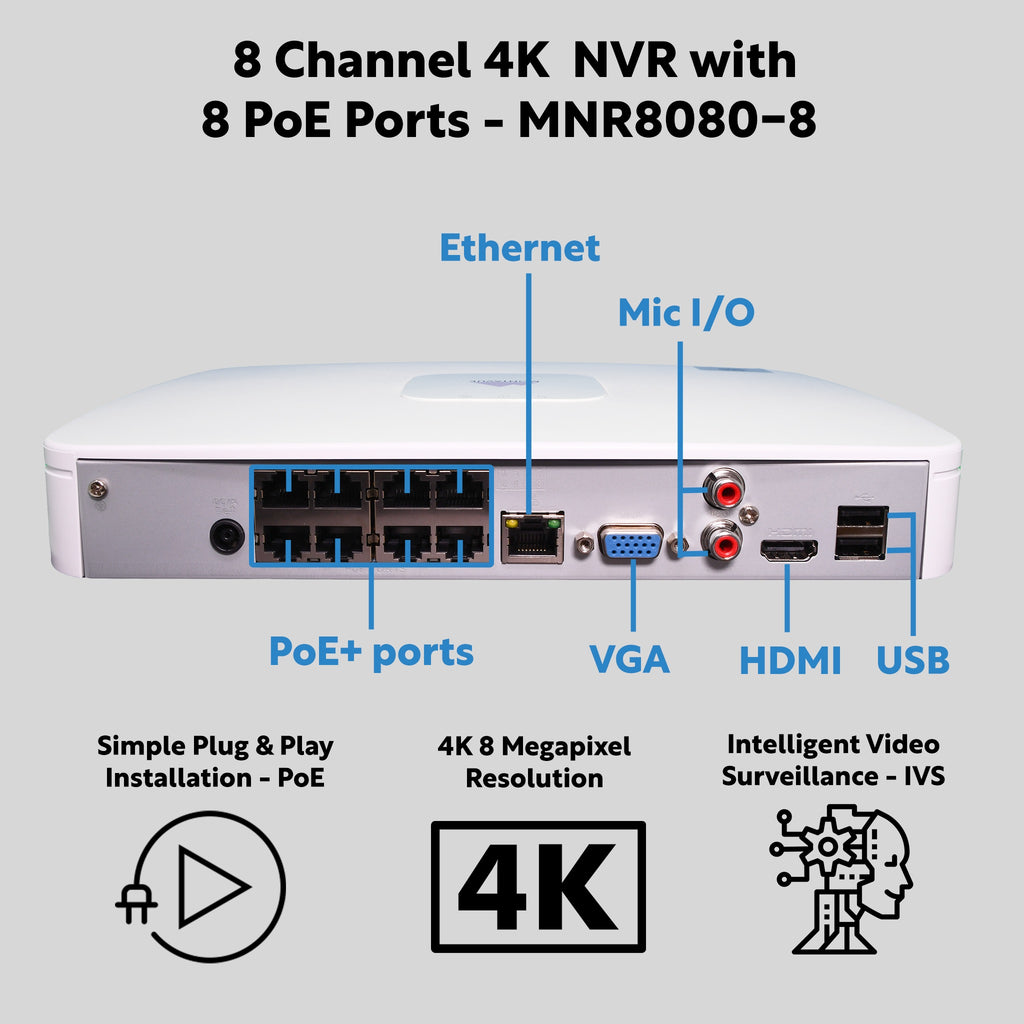

The included MNR8080-8 4K NVR includes a 2TB hard drive with the ability to hold up to 10TB. This NVR has 8 PoE ports so you only need to run a single cat5e cable per camera (up to 300ft) to transmit both data a power.
*To ensure your installation goes smoothly check out our recommended accessories listed above. Onboard storage options such as microSD cards can keep your recordings secure - even if something happens to your NVR.
